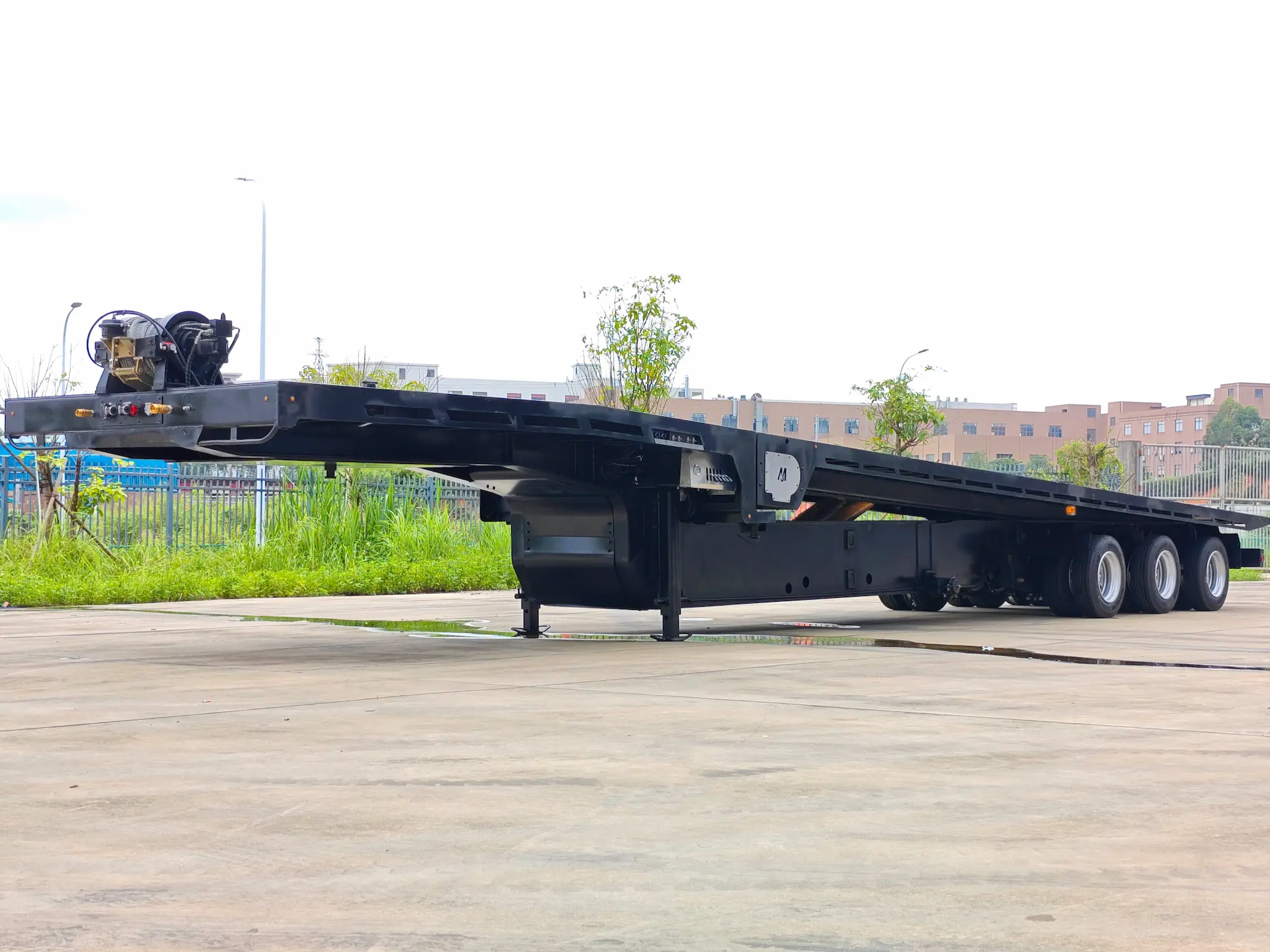

STT-50 extendable heavy-duty trailer parked on a lot, shown empty with full deck length visible

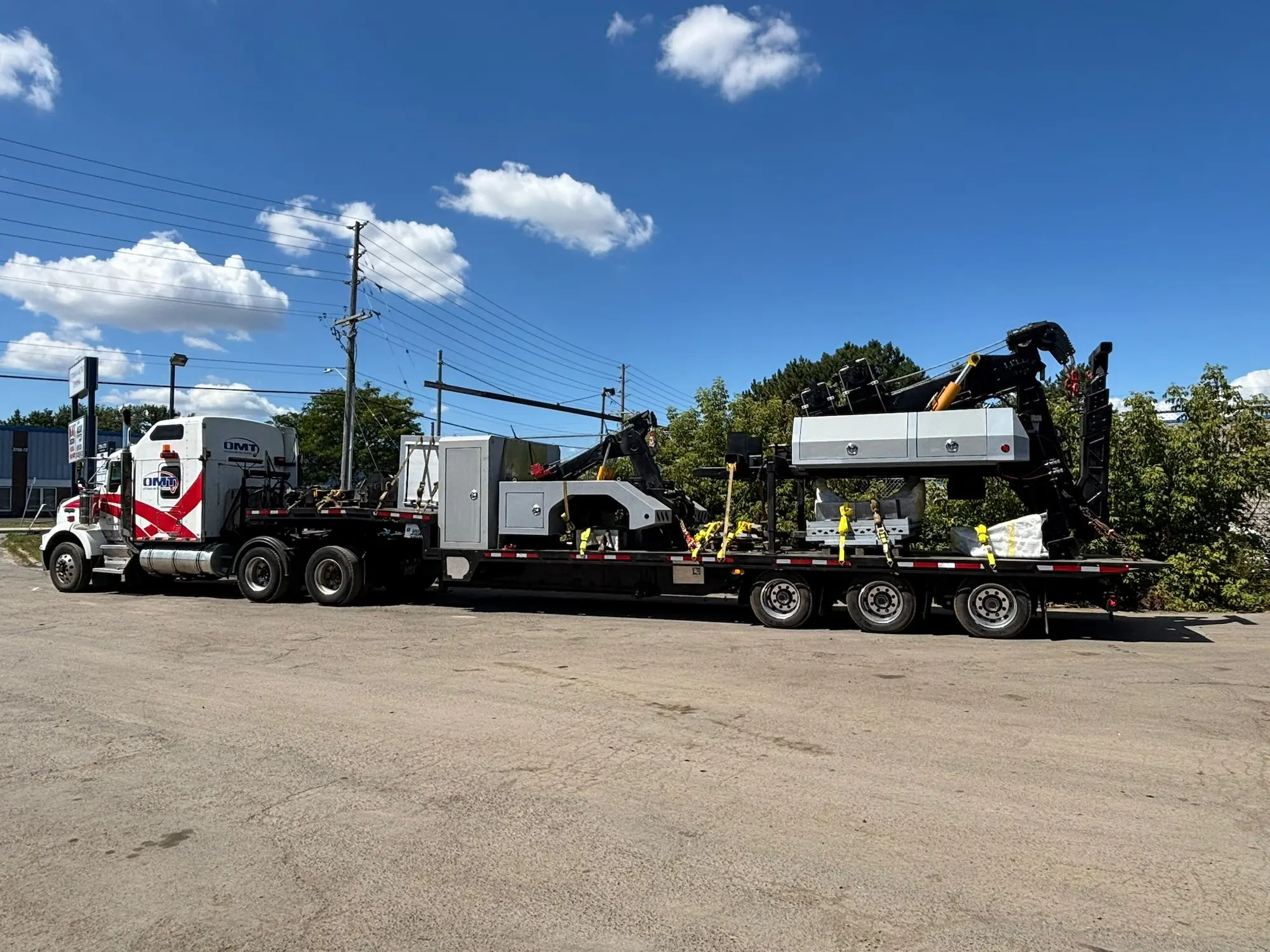

STT-50 heavy-haul trailer carrying a detachable towing unit and wrecker body, secured with chains and straps
STT-50 trailer hooked to a highway tractor, transporting industrial equipment across a yard
Side view of the STT-50 multi-axle heavy-haul trailer parked in a yard with full deck and suspension visible

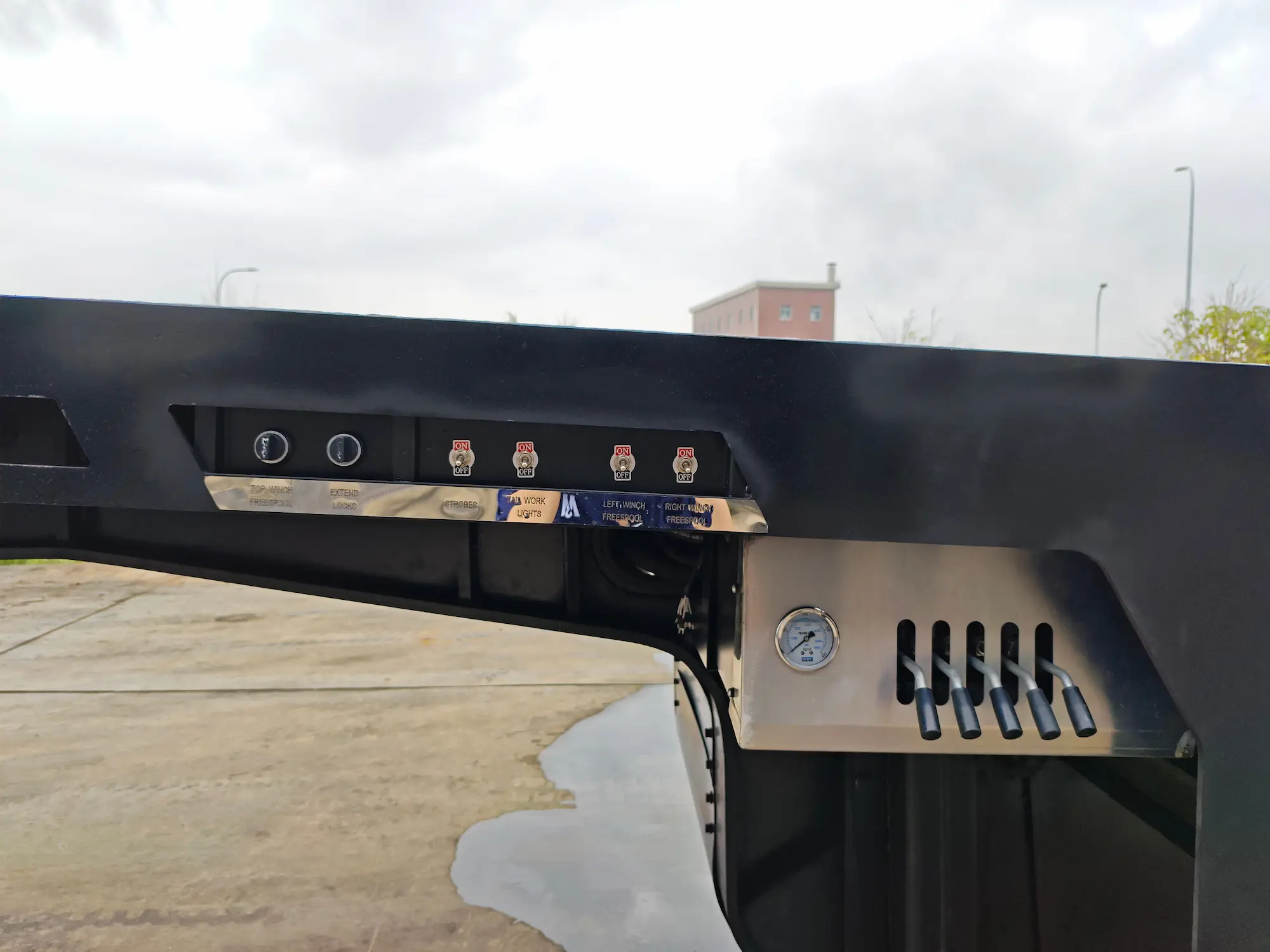

STT-50 trailer hydraulic control box showing valves, hoses, and pressure lines inside the sealed compartment
STT-50 trailer front control panel with electrical connectors, air lines, and operational switches

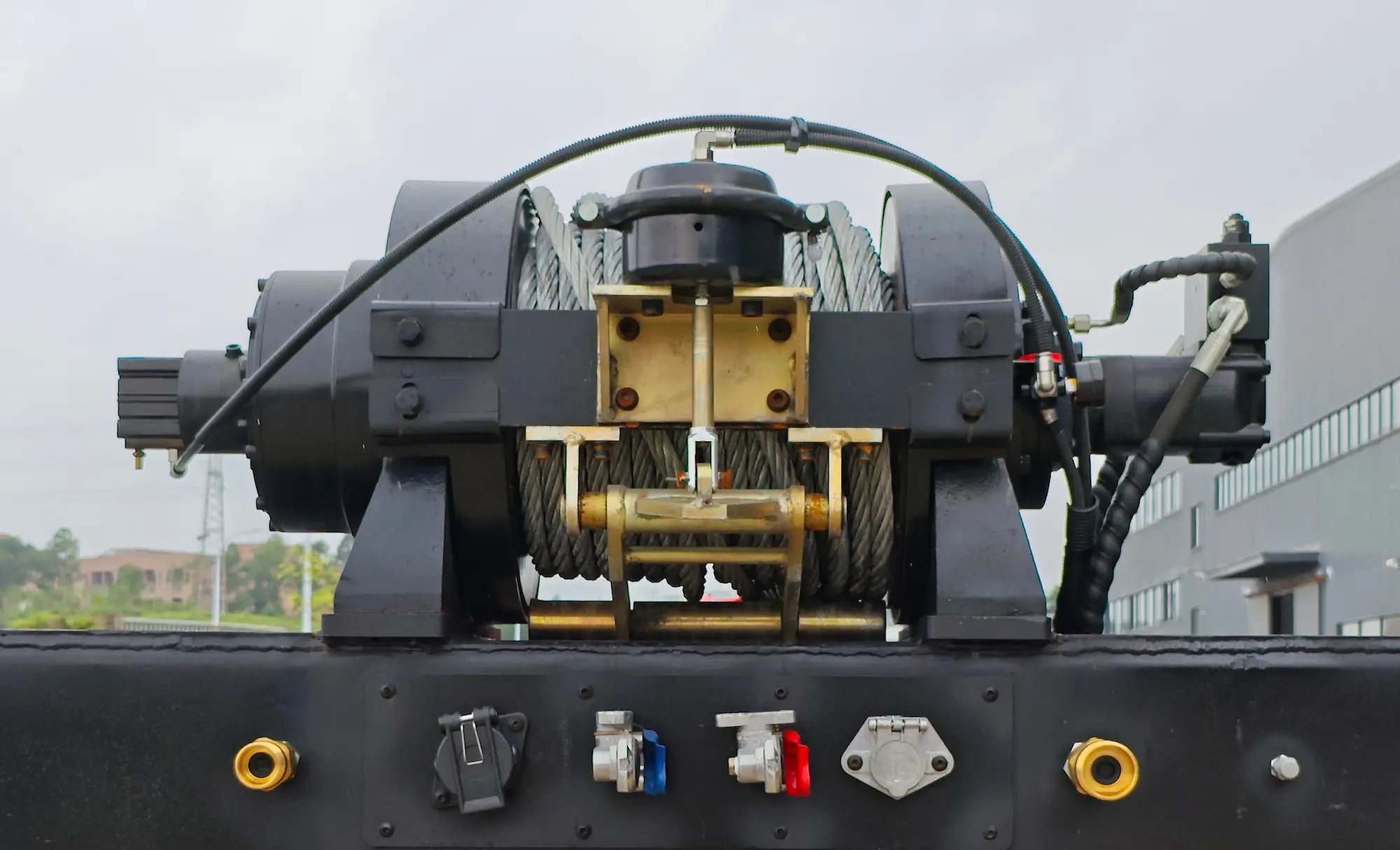

Top-mount winch assembly on the STT-50 trailer, showing cable drum, guides, and hydraulic connections
Close-up of STT-50 trailer side-frame showing reinforced steel structure and extendable part
STT-50 deck-mounted heavy-duty winch with steel cable and safety hook, positioned at the front of the trailer

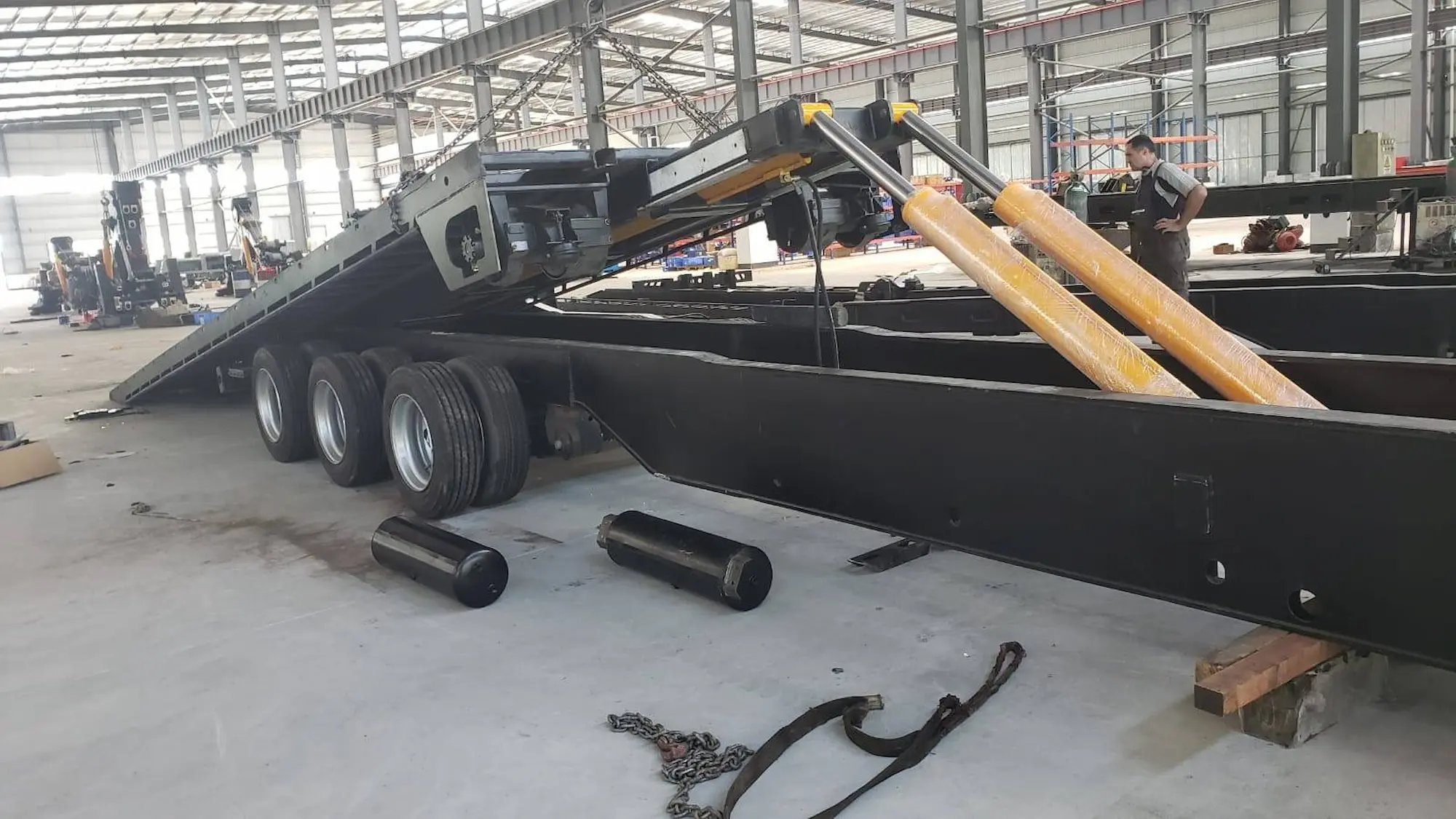

STT-50 extendable heavy-haul trailer inside workshop during assembly with axles, suspension and frame components

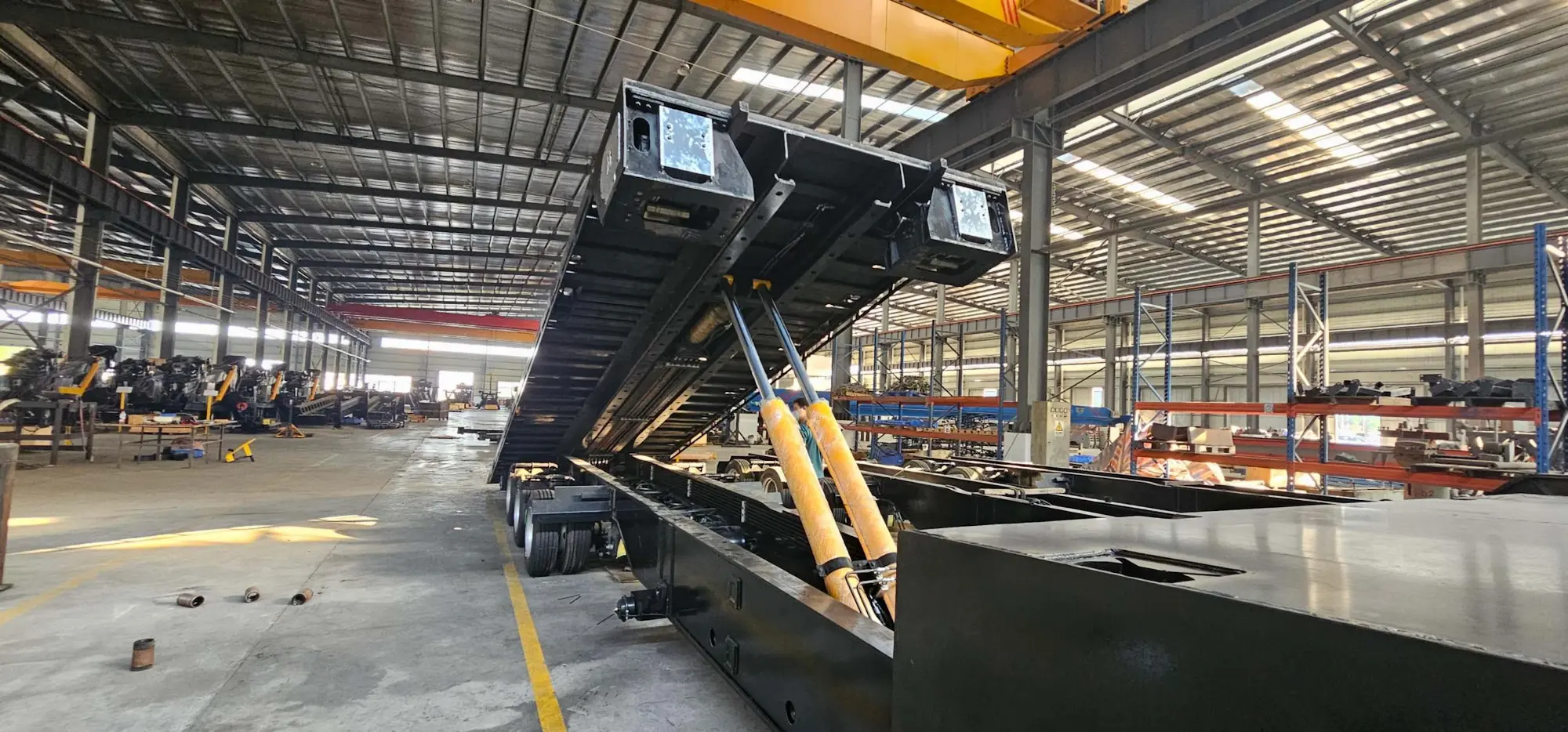

STT-50 trailer on hydraulic tilt inside factory, demonstrating loading angle and under-deck structure

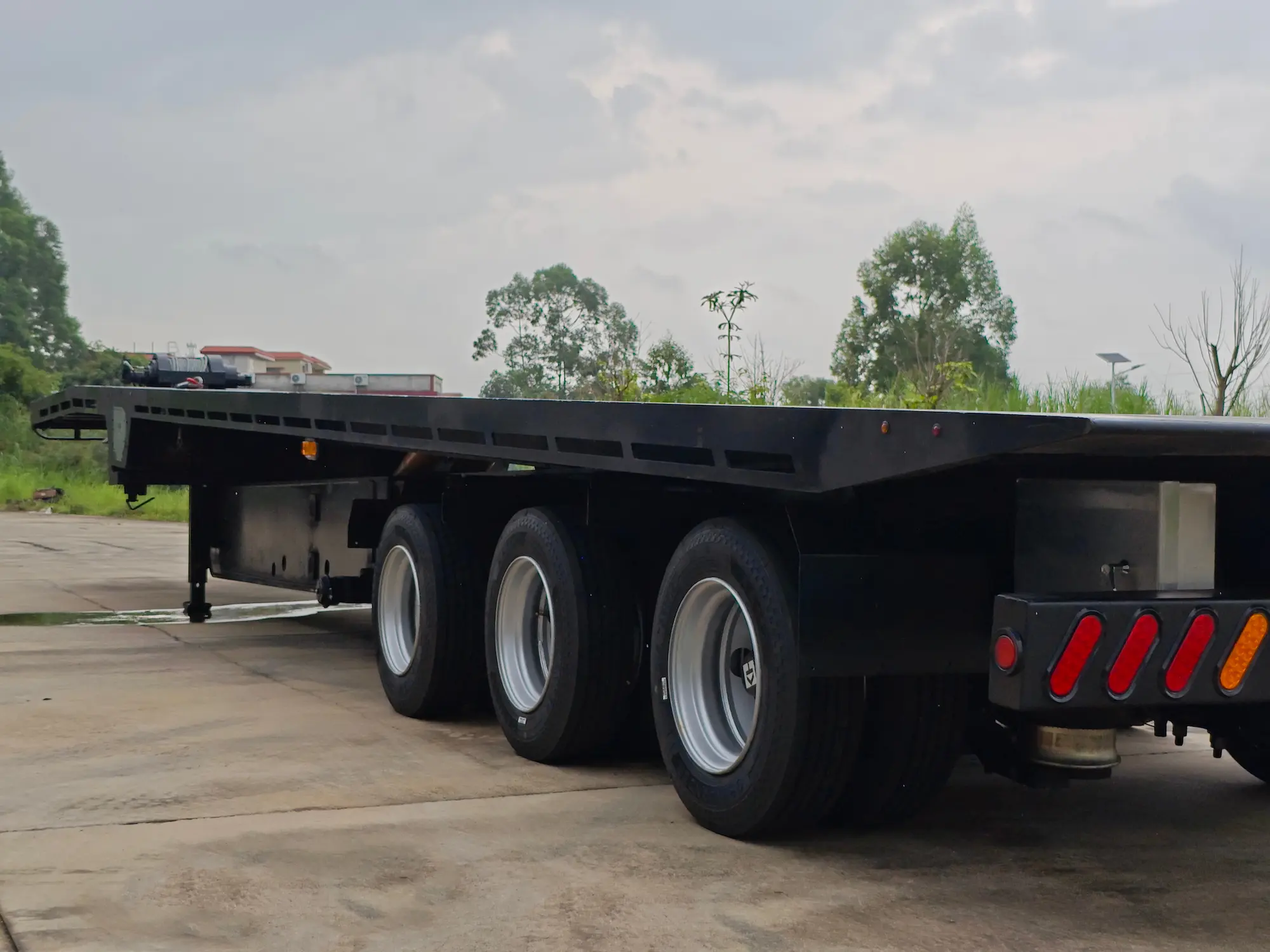

Rear view of STT-50 trailer showing tri-axle configuration, LED lighting and rear underride protection
Side profile of STT-50 flatbed heavy-haul trailer with tri-axle setup parked beside shipping containers

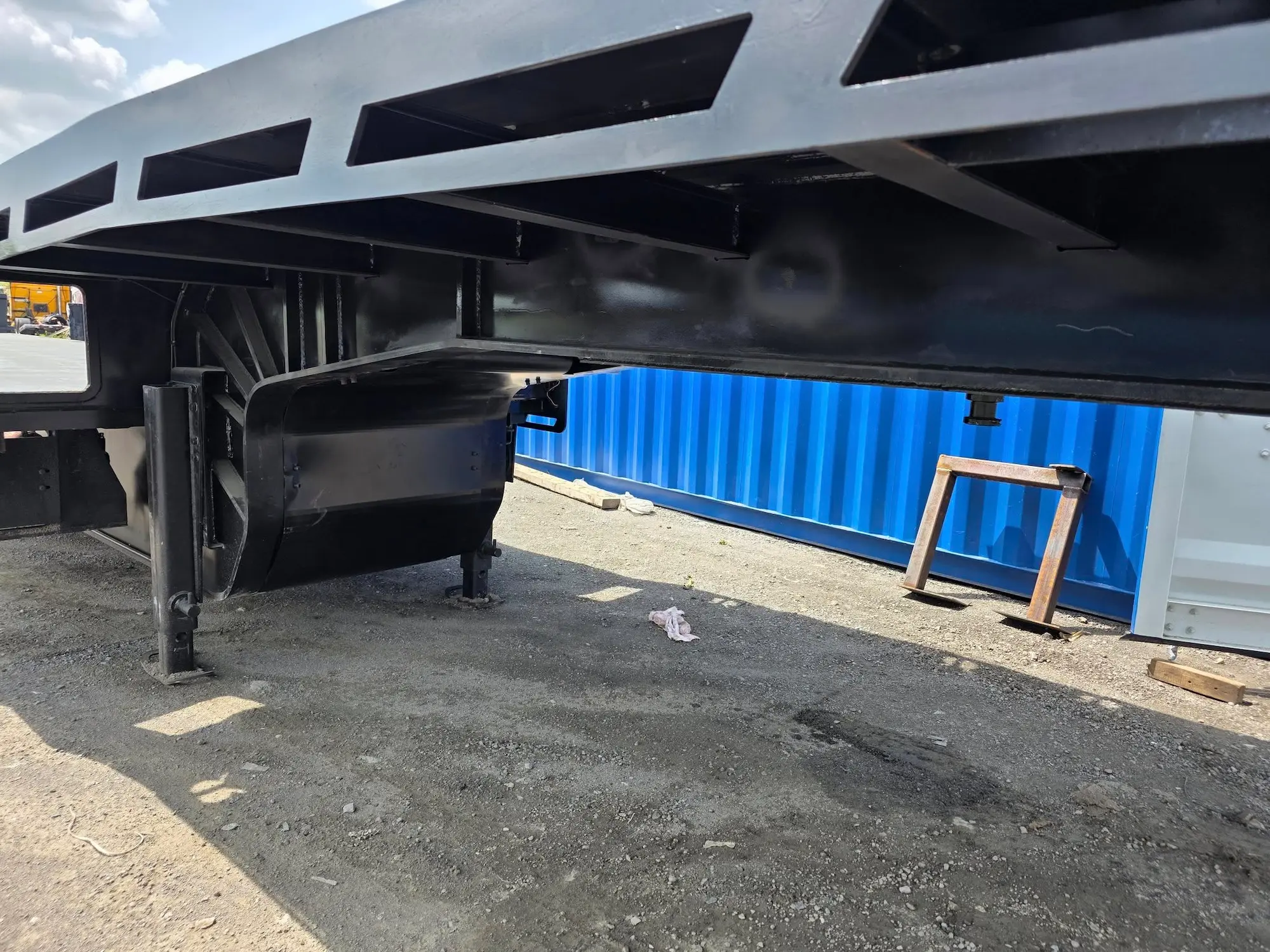

Close-up underside view of STT-50 trailer frame, showing landing gear, reinforced beams and cross-members

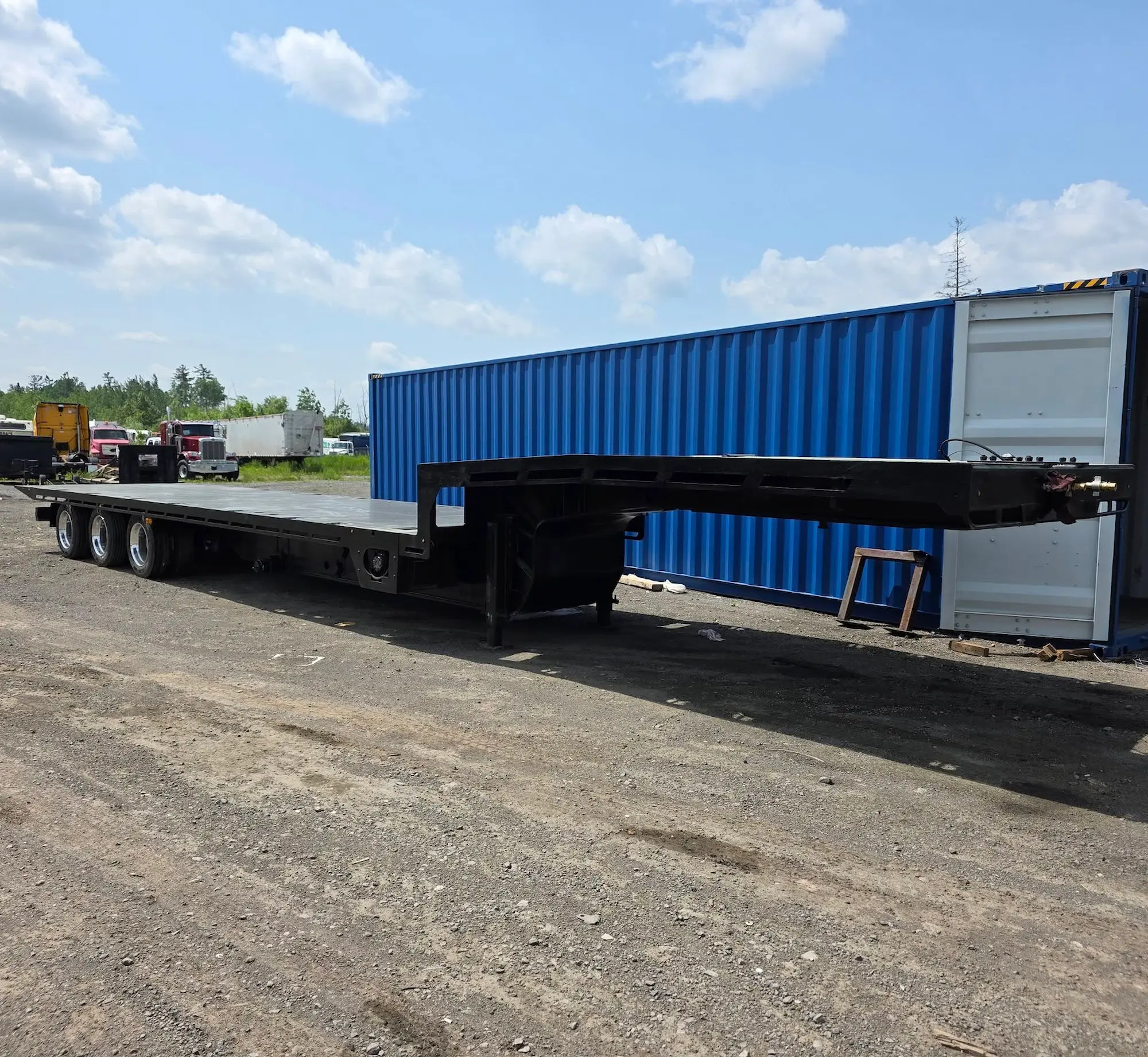

STT-50 extendable trailer parked in yard with shipping containers, showing full-length deck and axle spacing
STT-50 extendable heavy-duty trailer parked on a lot, shown empty with full deck length visible

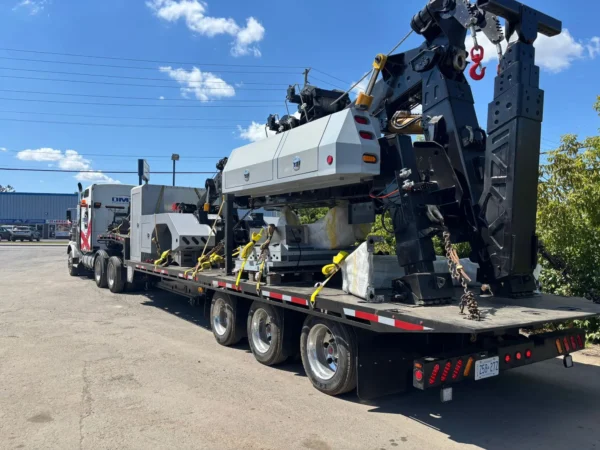

STT-50 heavy-haul trailer carrying a detachable towing unit and wrecker body, secured with chains and straps

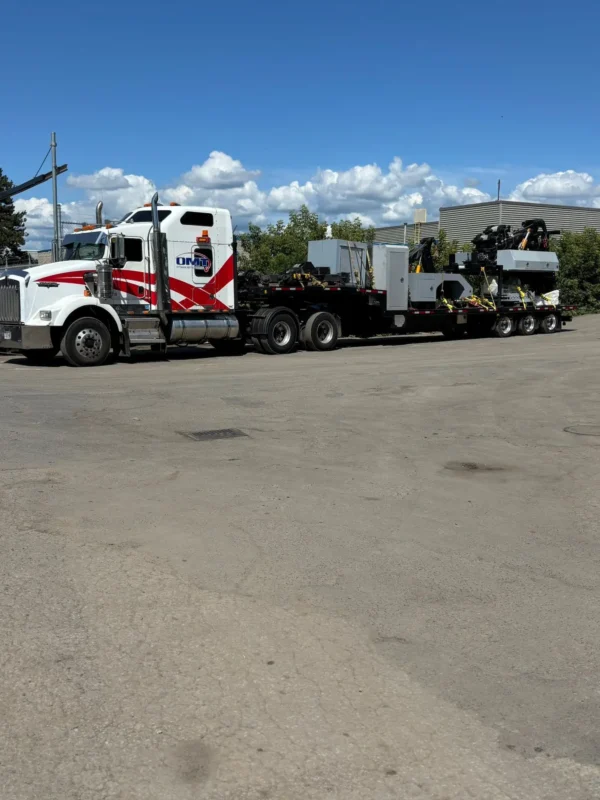

STT-50 trailer hooked to a highway tractor, transporting industrial equipment across a yard
Side view of the STT-50 multi-axle heavy-haul trailer parked in a yard with full deck and suspension visible

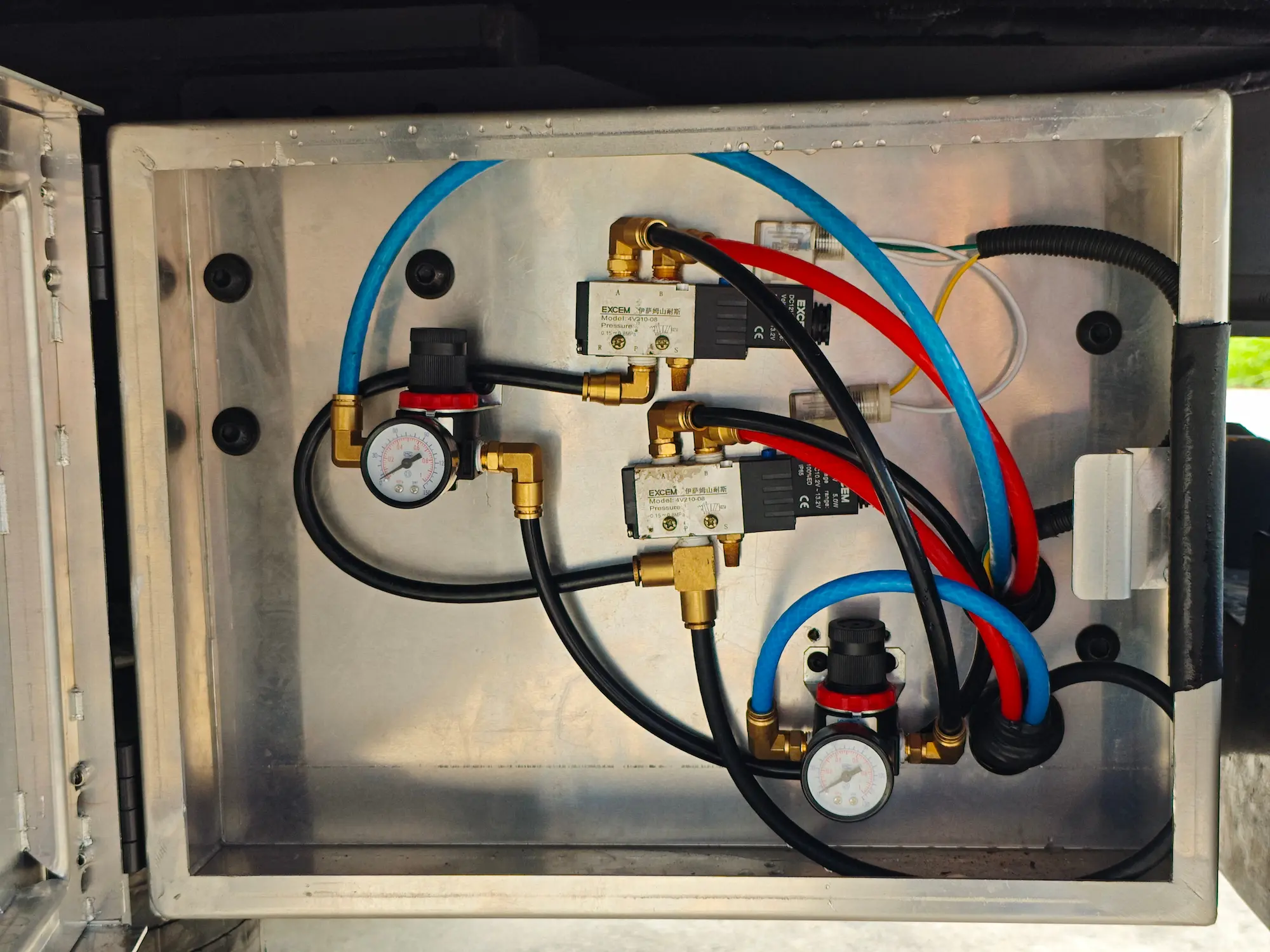

STT-50 trailer hydraulic control box showing valves, hoses, and pressure lines inside the sealed compartment
STT-50 trailer front control panel with electrical connectors, air lines, and operational switches
Top-mount winch assembly on the STT-50 trailer, showing cable drum, guides, and hydraulic connections

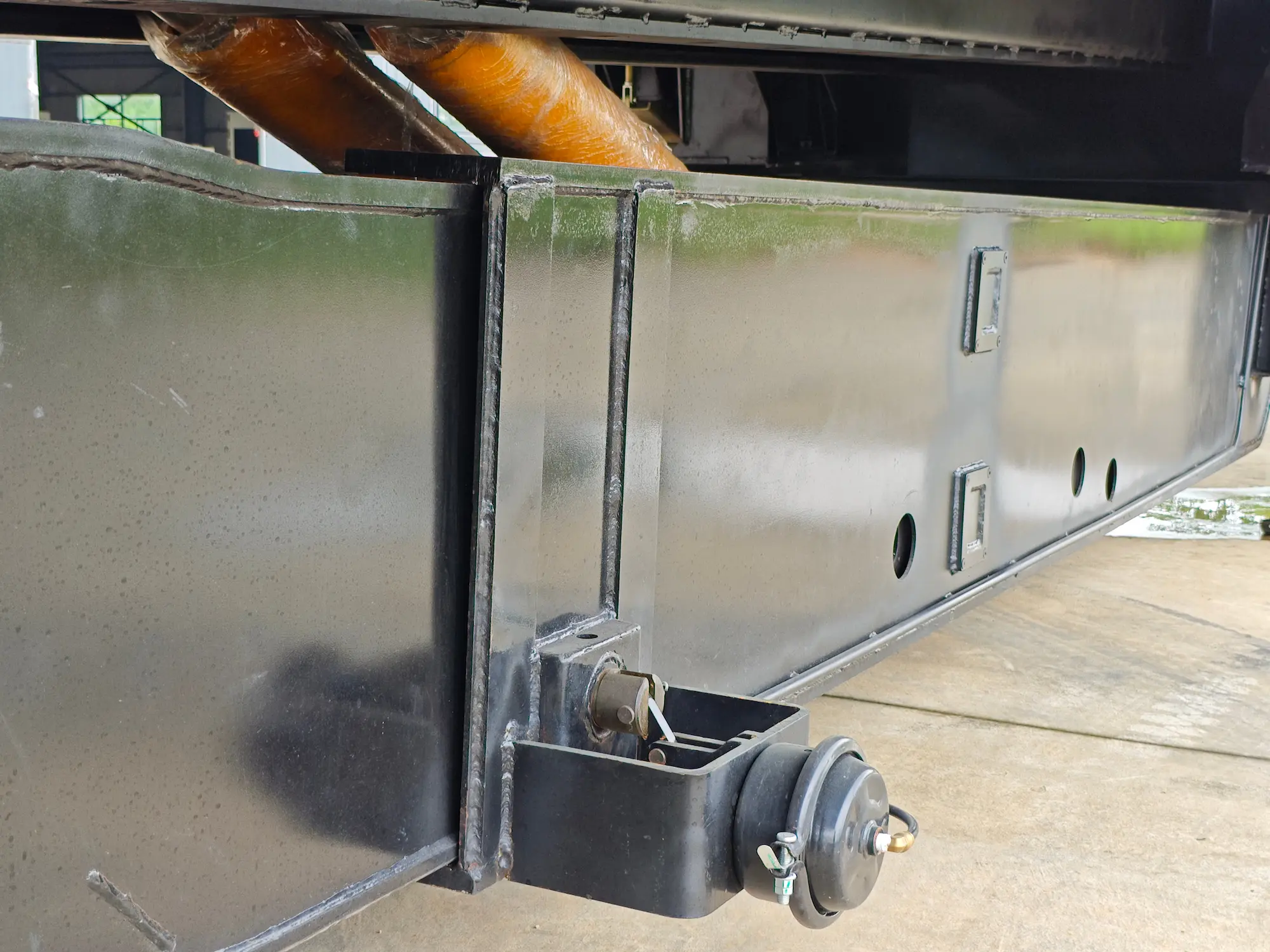

Close-up of STT-50 trailer side-frame showing reinforced steel structure and extendable part

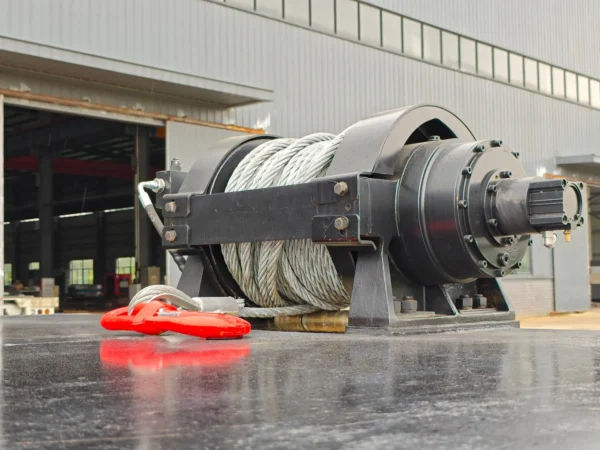

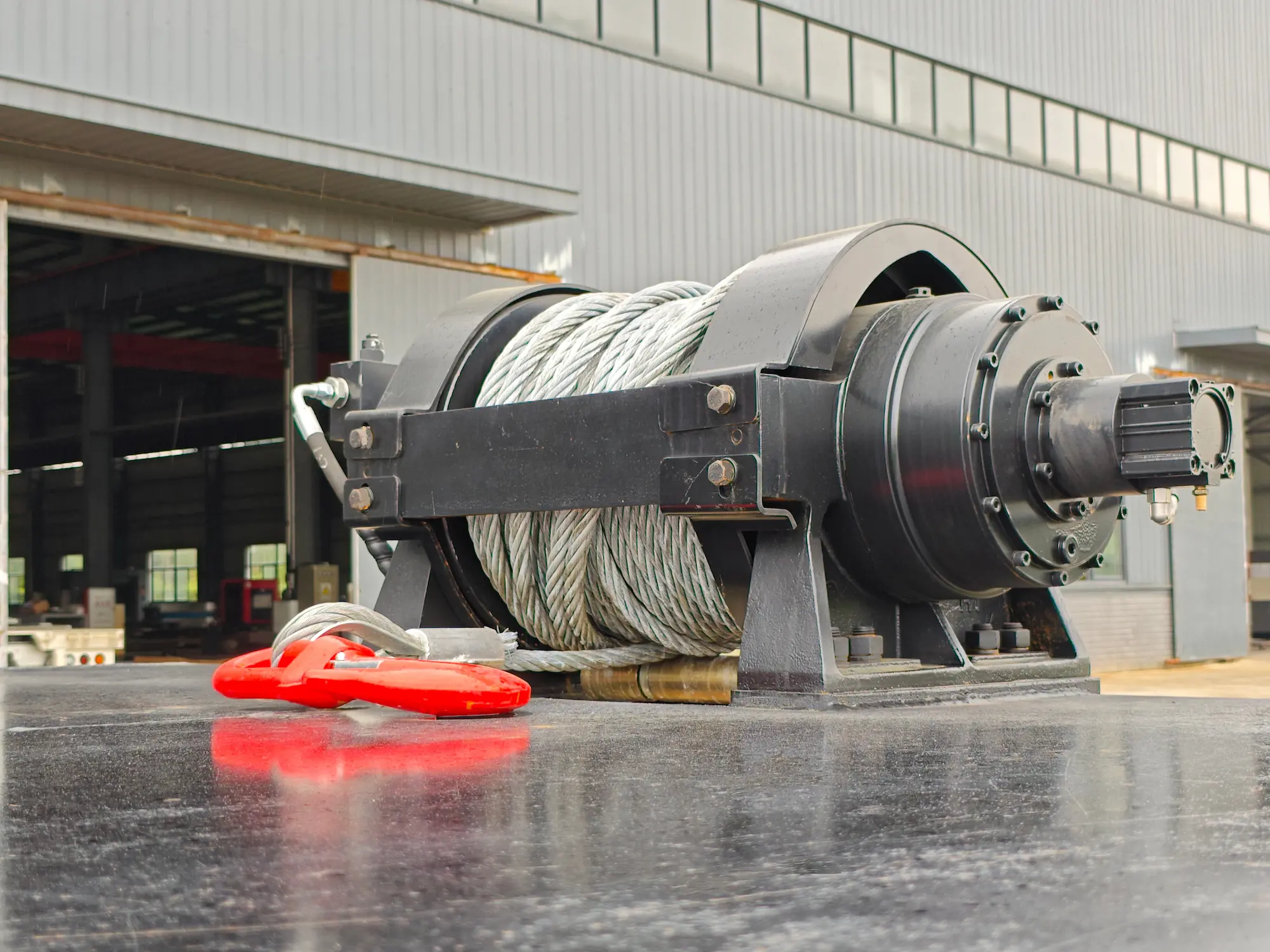

STT-50 deck-mounted heavy-duty winch with steel cable and safety hook, positioned at the front of the trailer
STT-50 extendable heavy-haul trailer inside workshop during assembly with axles, suspension and frame components
STT-50 trailer on hydraulic tilt inside factory, demonstrating loading angle and under-deck structure

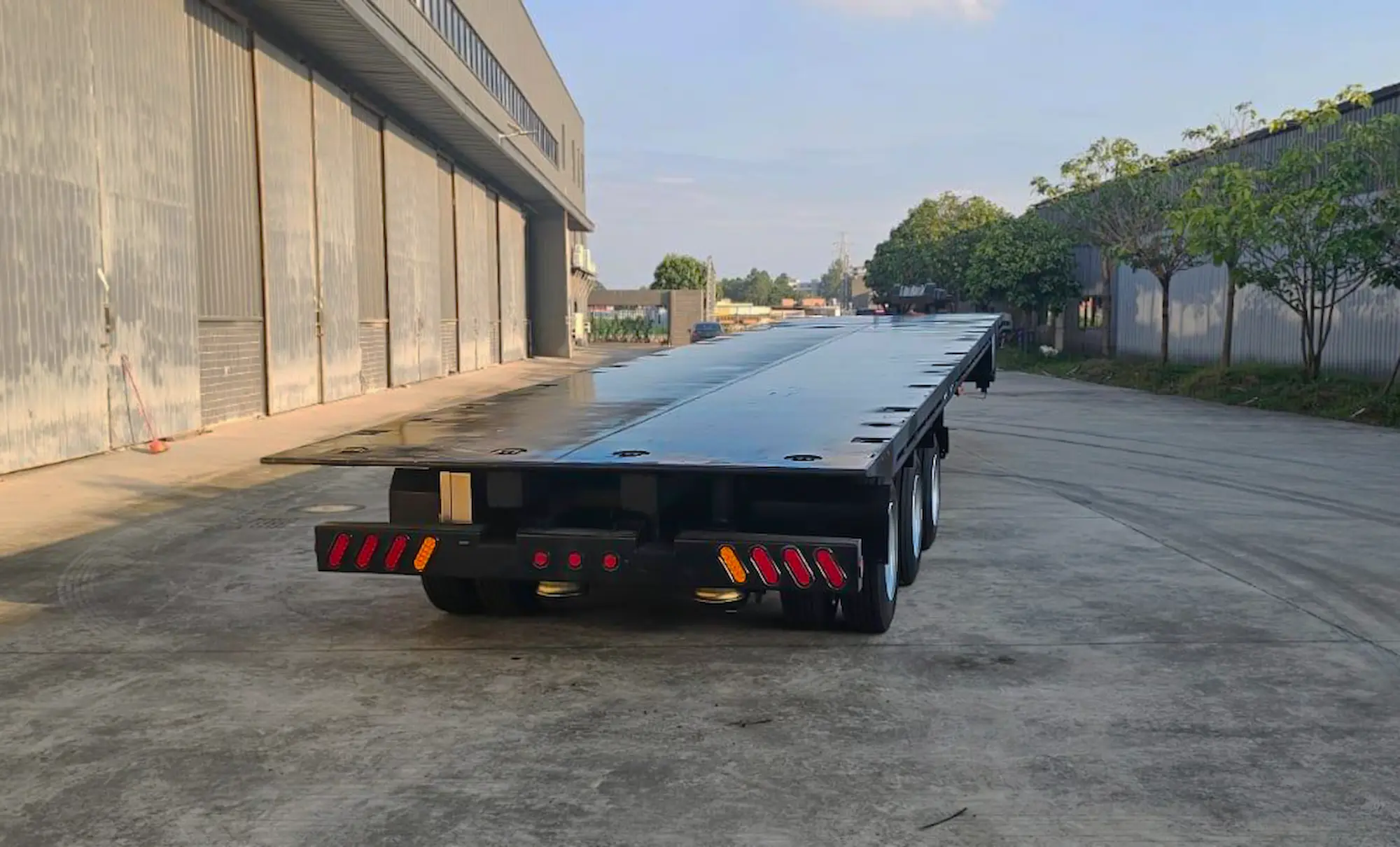

Rear view of STT-50 trailer showing tri-axle configuration, LED lighting and rear underride protection

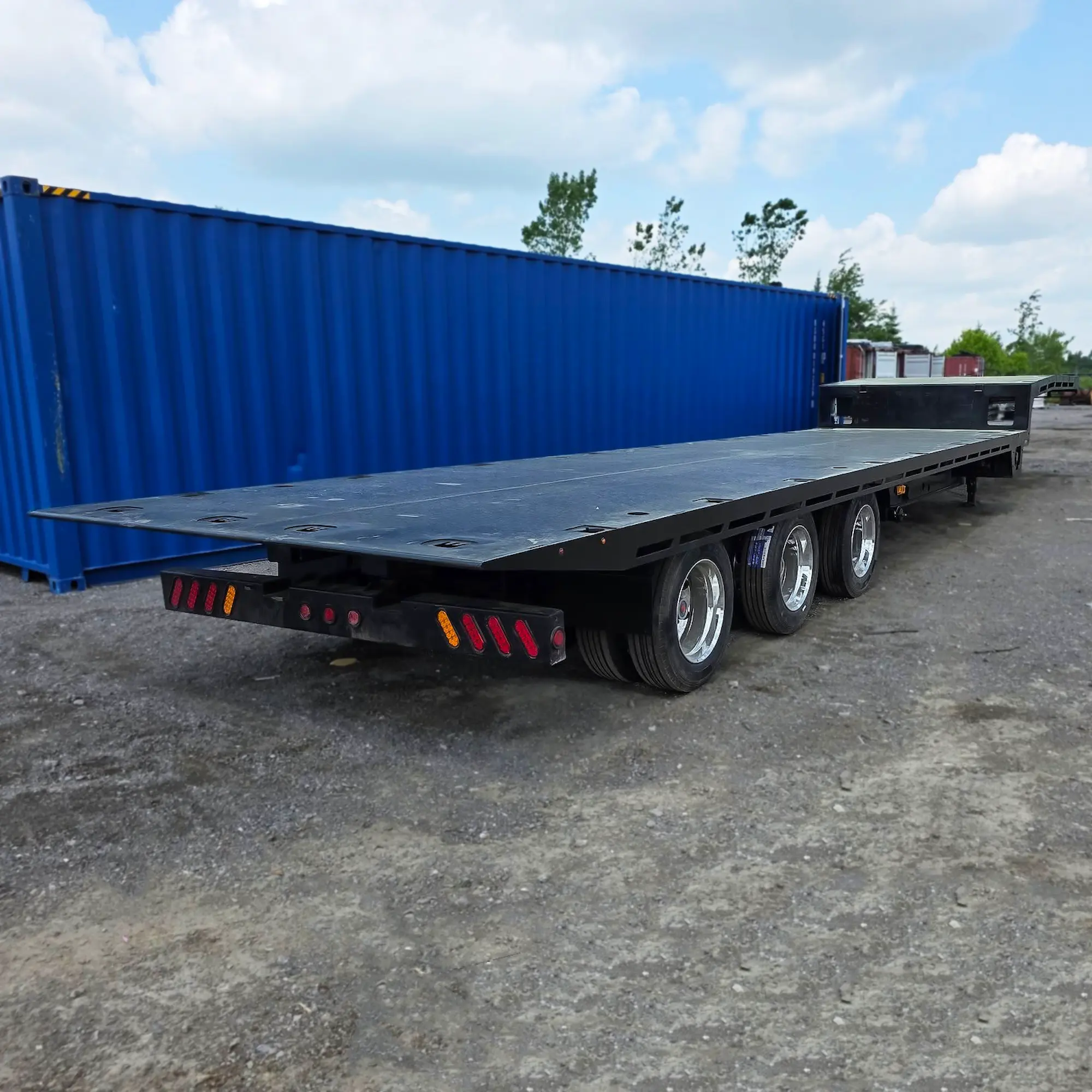

Side profile of STT-50 flatbed heavy-haul trailer with tri-axle setup parked beside shipping containers
Close-up underside view of STT-50 trailer frame, showing landing gear, reinforced beams and cross-members
STT-50 extendable trailer parked in yard with shipping containers, showing full-length deck and axle spacing

STT-50

Built for the BIG Jobs

The 50-ton Metro Super Tilt Trailer is built to handle your toughest hauling tasks, from trucks and heavy equipment to agriculture machinery. Its hydraulic tilt deck and optional trombone extension make loading easy, while a powerful triple winch system ensures reliable performance. With air ride suspension, LED lighting, wireless remote, and customizable options, it’s a rugged, versatile trailer ready for any challenge.

Product Inquiry
Call us for a Quote

Table of Contents

Built for the BIG Jobs

The 50-ton Metro Super Tilt Trailer is built to handle your toughest hauling tasks, from trucks and heavy equipment to agriculture machinery. Its hydraulic tilt deck and optional trombone extension make loading easy, while a powerful triple winch system ensures reliable performance. With air ride suspension, LED lighting, wireless remote, and customizable options, it’s a rugged, versatile trailer ready for any challenge.

As with all Metro Tow Trucks, customization is the order of the day and we’ll build your trailer the way you want it. Don’t hesitate to inquire, standard and customized trailers are surprisingly inexpensive.

Mass of unit: 11,596 kg (25,500 lbs)



Standard Features

  • 50 Ton Rated Capacity
  • Hydraulic Tilt + Trombone Extension (optional)
  • 44,000 lb Top Winch + 2x 22,000 lb Lower Winches
  • FUWA/KHitch Axles | 17.5″ or 19.5″ Tires
  • LED Lighting
  • Wireless Remote
  • WABCO EBS or Bendix ABS
  • Air Ride Suspension with Dump
  • Fully Customizable

Specifications

Maximum Rated Loads

  • Deck Rating, kg (50000)
  • Deck Rating (Main), kg (37420)
  • Deck Rating (Upper), kg (12475)

Dimensions

  • Overall Length, mm (16154)
  • Overall Width, mm (2579)
  • Overall Height, mm (1457)
  • Weight (Empty), kg (13036)

Deck Specification

  • Appx Deck Height, mm (960)
  • Upper Deck Height, mm (1605)
  • Deck Length (Main Deck), mm (9812)
  • Deck Length (Upper Deck), mm (4086)
  • Deck Width, mm (2459/2559)
  • Deck Thickness (Main), mm (6)
  • Deck Thickness (Upper), mm (6)
  • Deck Material (Steel)
  • Types of cargo security (12xContainer Twistlocks, 16×Chain Tie Downs 12mm; 4xChain Tie Downs 16mm)
  • Max Tilt Angle Deck/Beavertail/Rail, deg (12)
  • Stroke Sliding Axles, mm (3814)
  • Expandable Drop Frame, mm (900 and 1800)

Drag Winch Rating

  • Quantity, pc(s) (3)
  • Type (Planetary)
  • Main Winch, ton (22)
  • Cable, (19.5mm × 53 mm)
  • Auxiliary Winch, ton (11)
  • Cable, （16mm × 35 m)

Chassis Specifications

  • Quantity Axle(s), pc(s) (3)
  • Rating Axle (Each), kg (11000)
  • Suspension (Pneumatic)
  • Brakes (Air, ABS)
  • Tire (235/75R17.5)
  • Rim (R17.5(PCD 8x275))
  • Hitch Type (Semi KingPin Ø50mm)
  • King Pin Setback (Radius), mm (1405)
  • King Pin Height (1235)
  • Swing Clearence, mm (2150)

Hydraulic System

  • Operating Pressure, bar (203)
  • Hydraulic Line Burst Pressure, bar (1320)
  • System Flow, LPM (80)
  • System Capacity (Transport Position), L (50)
  • System Capacity (Retracted), L (55)
  • System Capacity (Extended), L (92)
  • Reservoir Capacity, L (90)

Type of Oil

  • -17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
  • -40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)

Some optional equipment may be shown.

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
