RTR-70

Recovery King

The RTR-70 is Metro Tow Trucks’ largest and most powerful rotator—engineered specifically for extreme recovery operations where only the strongest equipment will succeed.
Capable of handling virtually any challenge you face, the RTR-70 delivers unmatched lifting, rotation, and recovery performance in the most demanding environments.

Whether you’re competing for large contracts or arriving first at a major accident scene, the RTR-70 sets you apart. Its presence, capability, and professional-grade power make a statement long before the work begins.

For operators who demand dominance, reliability, and absolute confidence, the RTR-70 is the flagship rotator that stands above the rest.

Unit weight without chassis: 22,600 kg (50,000 lbs)

Table of Contents

Recovery King

The RTR-70 is Metro Tow Trucks’ largest and most powerful rotator—engineered specifically for extreme recovery operations where only the strongest equipment will succeed.
Capable of handling virtually any challenge you face, the RTR-70 delivers unmatched lifting, rotation, and recovery performance in the most demanding environments.

Whether you’re competing for large contracts or arriving first at a major accident scene, the RTR-70 sets you apart. Its presence, capability, and professional-grade power make a statement long before the work begins.

For operators who demand dominance, reliability, and absolute confidence, the RTR-70 is the flagship rotator that stands above the rest.

Unit weight without chassis: 22,600 kg (50,000 lbs)

Standard Features

  • 6646 mm (262”) Cab to centre of tandem standard steel body
  • 2 x 30 ton (66,000 lbs) winches
  • 1 set of frame fork holders and 4 sets of frame forks
  • Safety chains
  • Frame fork and chain racks
  • Chrome door handle
  • Air and 12V/24V outputs
  • Non slide configuration

Options

  • Complete wireless remote control
  • Proportional remote control
  • Slide configuration
  • 2 additional 20 ton (44,000 lbs) winches
  • 609 mm (24″), 762 mm (30″), 914 mm (36″), 1219 mm (48″), 1828 mm (72″) tunnel box
  • Tailboard controls
  • Extra frame forks
  • Wheel lift receivers for single / double tires
  • Full recovery tool package
  • Custom storage system
  • Aluminum / Composite body
  • European body style
  • Gravel guard undercoating finish
  • Front push bumper
  • Front winch and Drag winch
  • XP, X-shape side puller
  • A-arm style side winches
  • Steel core rope
  • Chrome hand rails
  • In cab controls
  • Full size LED light bar
  • LED – working lights, strobe lights, lights inside toolbox
  • Custom painting
  • Installation services and extended warranty
  • Tow operators education & training

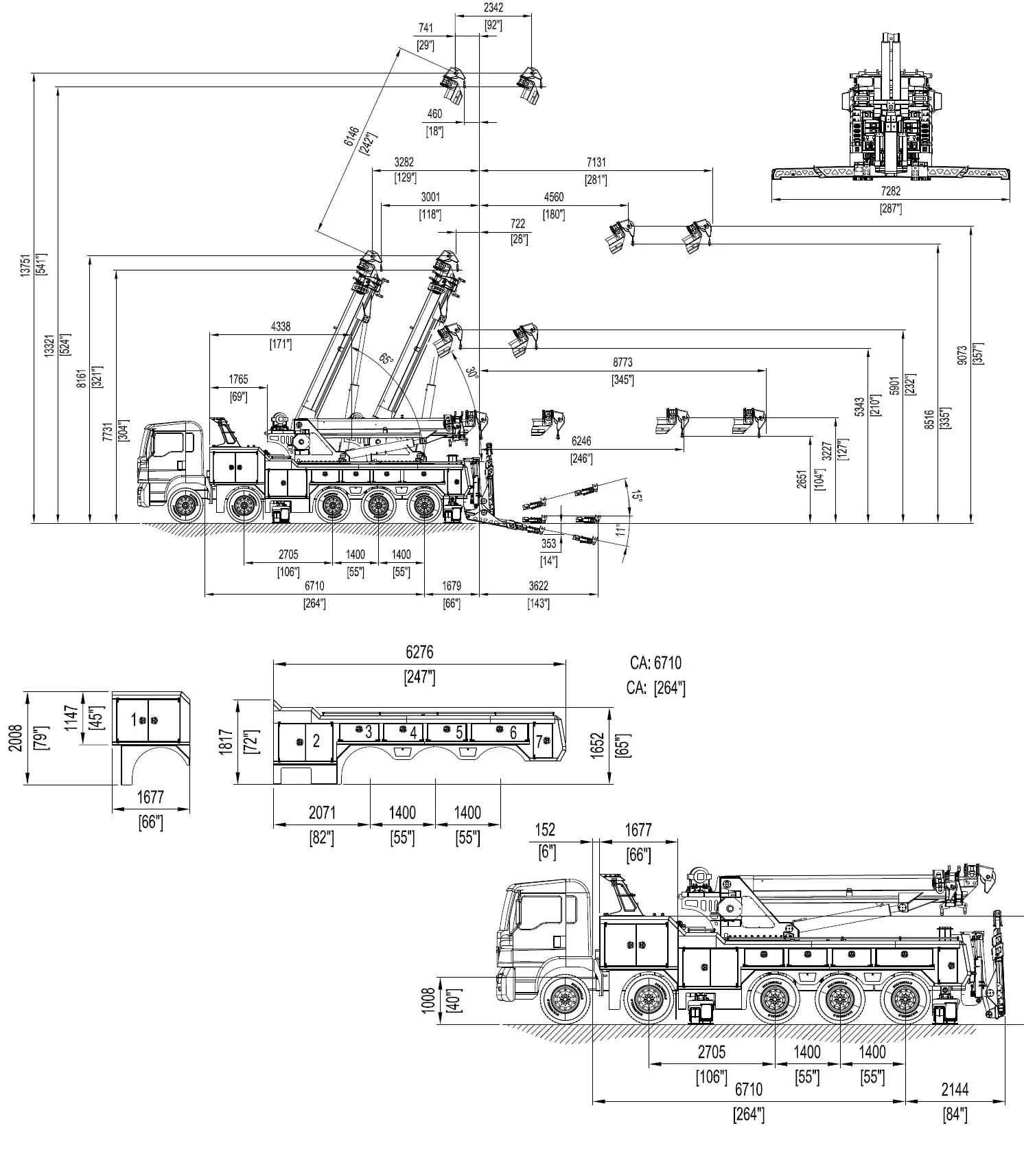

Line Drawing

NOTE: Axle configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Specifications

Boom Rating

  • Retracted Capacity (at max angle), kg (70000)
  • Extended Capacity (at max angle), kg (17500)
  • Max. Lift Angle, deg (60)
  • Max. Hook Height, mm (12949)
  • Reach Past Tailboard, mm (8821)

Wrecker Boom Winch Rating

  • Winch Type (on 1st layer) (Planetary)
  • Quantity (on 1st layer), pc(s)(2)
  • Pulling force (on 1st layer), kg (40000)
  • Winch Type (on 2nd layer) (Planetary)
  • Quantity (on 2nd layer), pc(s) (2)
  • Pulling force (on 2nd layer), kg (20000)

Wrecker Boom Wire Rope (on 1st layer)

  • Work Load Limit (each line), kg (9400)
  • Construction (6x36 IWR)
  • Diameter, mm (25)
  • Length, m (60)

Wrecker Boom Wire Rope (on 2nd layer)

  • Work Load Limit (each line), kg (6200)
  • Construction (6x36 IWR)
  • Diameter, mm (19)
  • Length, m (60)

Euro Low Underlift Rating (Optional)

  • Retracted Capacity (on forks), kg (31700)
  • Retracted distance to the forks, mm (1844)
  • Extended Capacity (on forks), kg (10400)
  • Extended distance to the forks, mm (3667)
  • Negative tilt angle, deg (11)
  • Tow Rating, kg (36000)

Tire Lift Rating

  • Lifting Capacity (each arm), kg (5600)
  • Lifting Capacity (total), kg (11300)
  • Towing Capacity, kg (36000)

5th wheel adapter

  • Lifting Capacity, kg (6800)
  • Towing Capacity, kg (11300)

Pintle Hook Ball Hitch

  • 2" (50mm) Ball Hitch, kg (4500)
  • Pintle Hook, kg (7200)
  • Gross Trailer Weight Max. vertical Load, kg (1300)

Hydraulic System

  • Operating Pressure, bar (203)
  • Hydraulic Line Burst Pressure, bar (1320)
  • System Flow, LPM (80)
  • System Capacity, L (300)
  • Reservoir Capacity, L (300)

Type of Oil

  • -17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
  • -40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)

Vehicle Recommendations

  • Front axle(s) weight (min) (2x6600)
  • Rear axle(s) weight (min) (3x10400)
  • Recommended GVW (min), kg (40000)
  • Recommended Tire Size (11R24.5)
  • Clear CA, mm (6645)

Unit Weight, kg (23713)
