RTR 40

The RTR-40 Ton is Metro’s intermediate rotator, but it doesn’t mean it is limited in its capabilities. This light rotator can pick up and rotate 10 ton (22,000 lbs.) at full extension. Meeting your budget and requirements. Metro is proud to produce this exceptional piece of equipment.

Unit weight without chassis: 19,500 kg (43,000 lbs)

Product Inquiry
Call us for a Quote

Table of Contents

Surprising Performance

The RTR-40 Ton is Metro’s intermediate rotator, but it doesn’t mean it is limited in its capabilities. This light rotator can pick up and rotate 10 ton (22,000 lbs.) at full extension. Meeting your budget and requirements. Metro is proud to produce this exceptional piece of equipment.

Unit weight without chassis: 19,500 kg (43,000 lbs)

Standard Features

  • 4572 mm (180’’) Cab to centre of tandem standard steel body
  • 2 x 20 ton (44,000 lbs) winches
  • 1 set of frame fork holders and 4 sets of frame forks
  • Safety chains
  • Frame fork and chain racks
  • Chrome door handle
  • Air and 12V/24V outputs
  • Non slide configuration

Options

  • Complete wireless remote control
  • Proportional remote control
  • Slide configuration
  • 2 additional 10 ton (22,000 lbs) winches
  • 609 mm (24″), 762 mm (30″), 914 mm (36″), 1219 mm (48″), 1828 mm (72″) tunnel box
  • Tailboard controls
  • Extra frame forks
  • Wheel lift receivers for single / double tires
  • Full recovery tool package
  • Custom storage system
  • Aluminum / Composite body
  • European body style
  • Gravel guard undercoating finish
  • Front push bumper
  • Front winch and Drag winch
  • XP, X-shape side puller
  • A-arm style side winches
  • Steel core rope
  • Chrome hand rails
  • In cab controls
  • Full size LED light bar
  • LED – working lights, strobe lights, lights inside toolbox
  • Custom painting
  • Installation services and extended warranty
  • Tow operators education & training

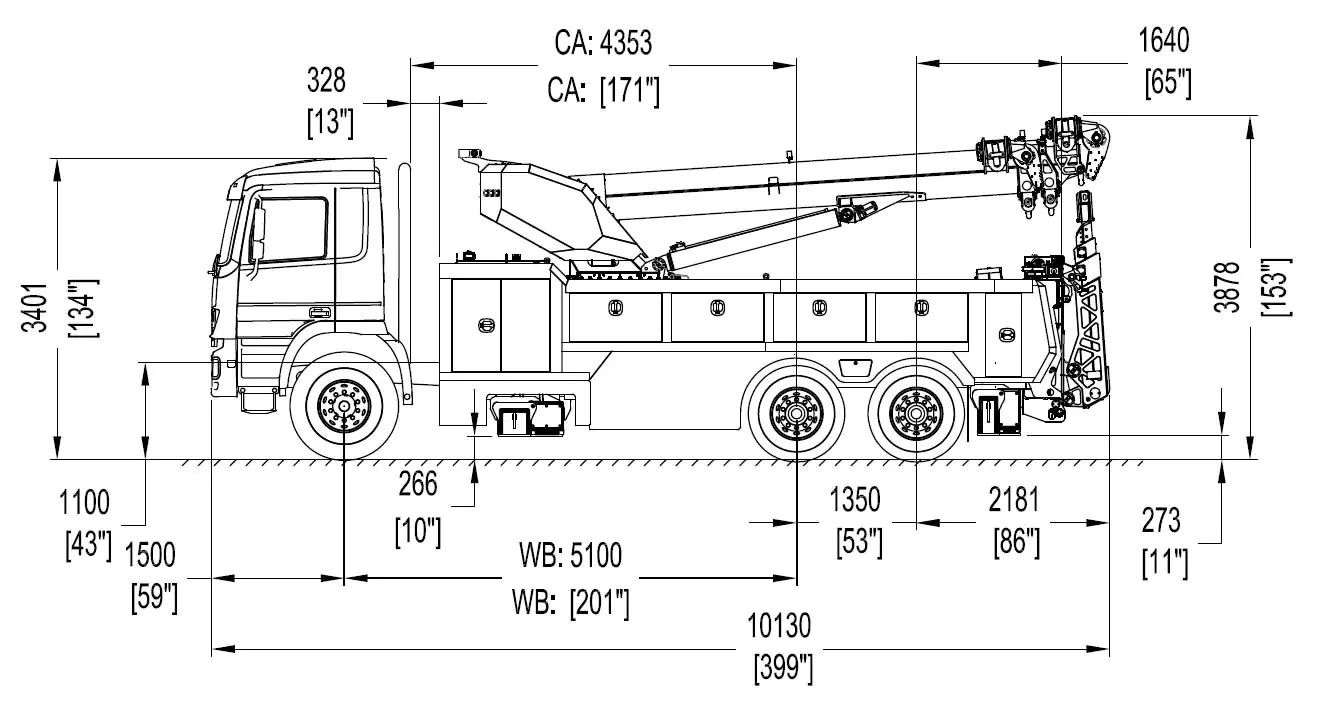

Line Drawing

NOTE: Axle configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Specifications

Underlift Specifications / * = Euro Option

  • Retracted capacity on forks 15.8 ton (35,000 lbs) / * same
  • Retracted distance to the forks 1746 mm (69″) / * same
  • Extended capacity on forks 6.8 ton (15,000 lbs) / * same
  • Extended distance to the forks 3492 mm (137″) / * 3657 mm (144″) Negative tilt angle -10°
  • Tow Rating 36 ton (80,000 lbs)

Boom Specifications

  • Retracted capacity (at 65°) 35 ton (77,000 lbs)
  • Extended capacity (at 65°) 8.5 ton (17,000 lbs)
  • Maximum Lift angle 65°
  • Maximum Hook Height 13529 mm (533″)
  • Reach Past Tailboard 5219 mm (205″)

Vehicle Recommendations

  • Front axle(s) weight (min) 9 ton (20,000 lbs)
  • Rear axle(s) weight (min) 2 x 10.4 ton (23,000 lbs)
  • Reccomended Tire size R24,5
  • Clear CA 4353 mm (171”)

Winch Specifications

  • Quantity 2 pcs
  • Pulling force (on 1st layer) 20 ton (44,000 lbs)
  • & optional 10 ton (22,000 lbs)
  • Winch type Planetary
  • Cable length 19 mm x 60 m (3/4″ x 200′)

Some optional equipment may be shown.

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
