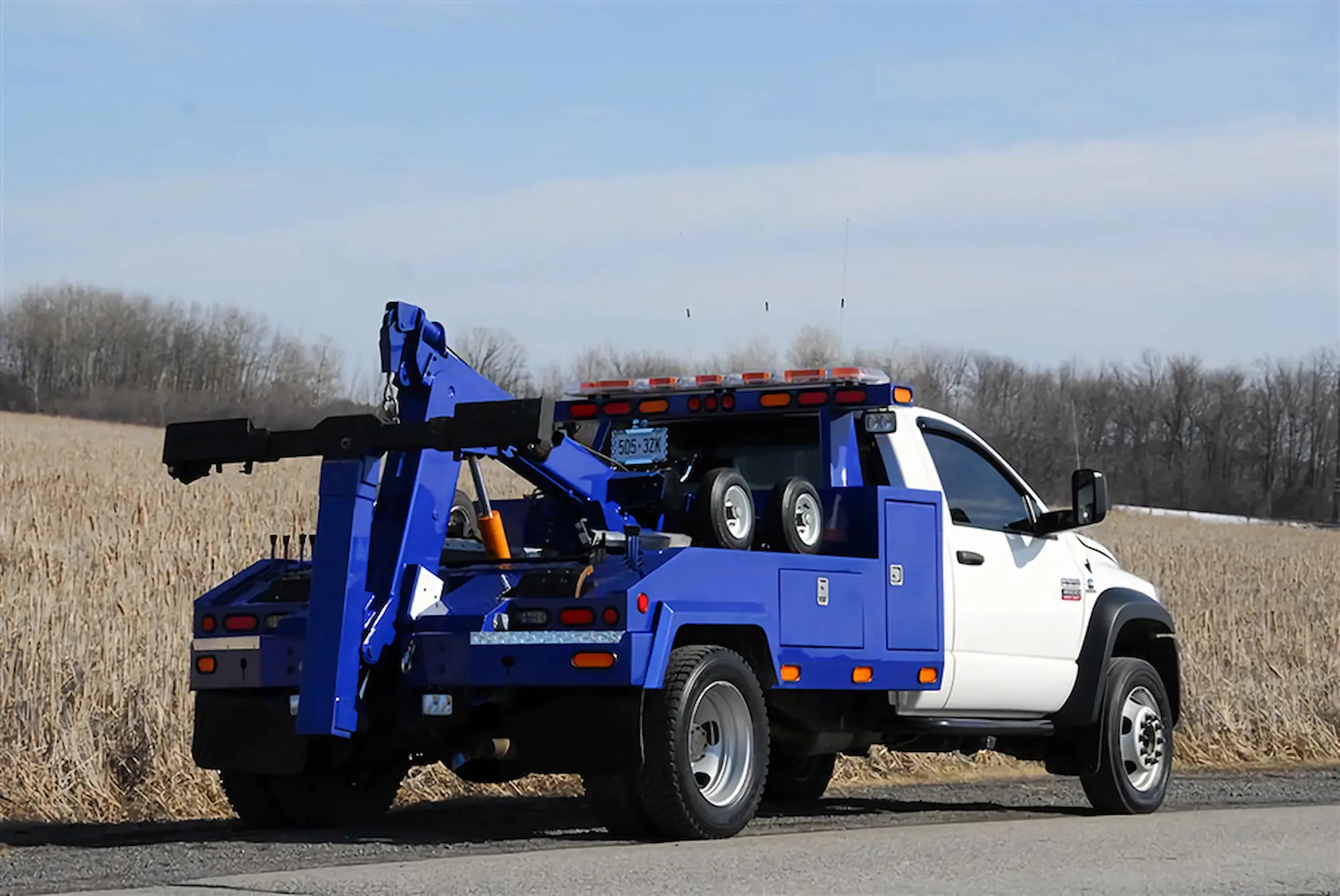

Metro Tow Trucks INT-5 blue integrated wrecker rear three-quarter right view

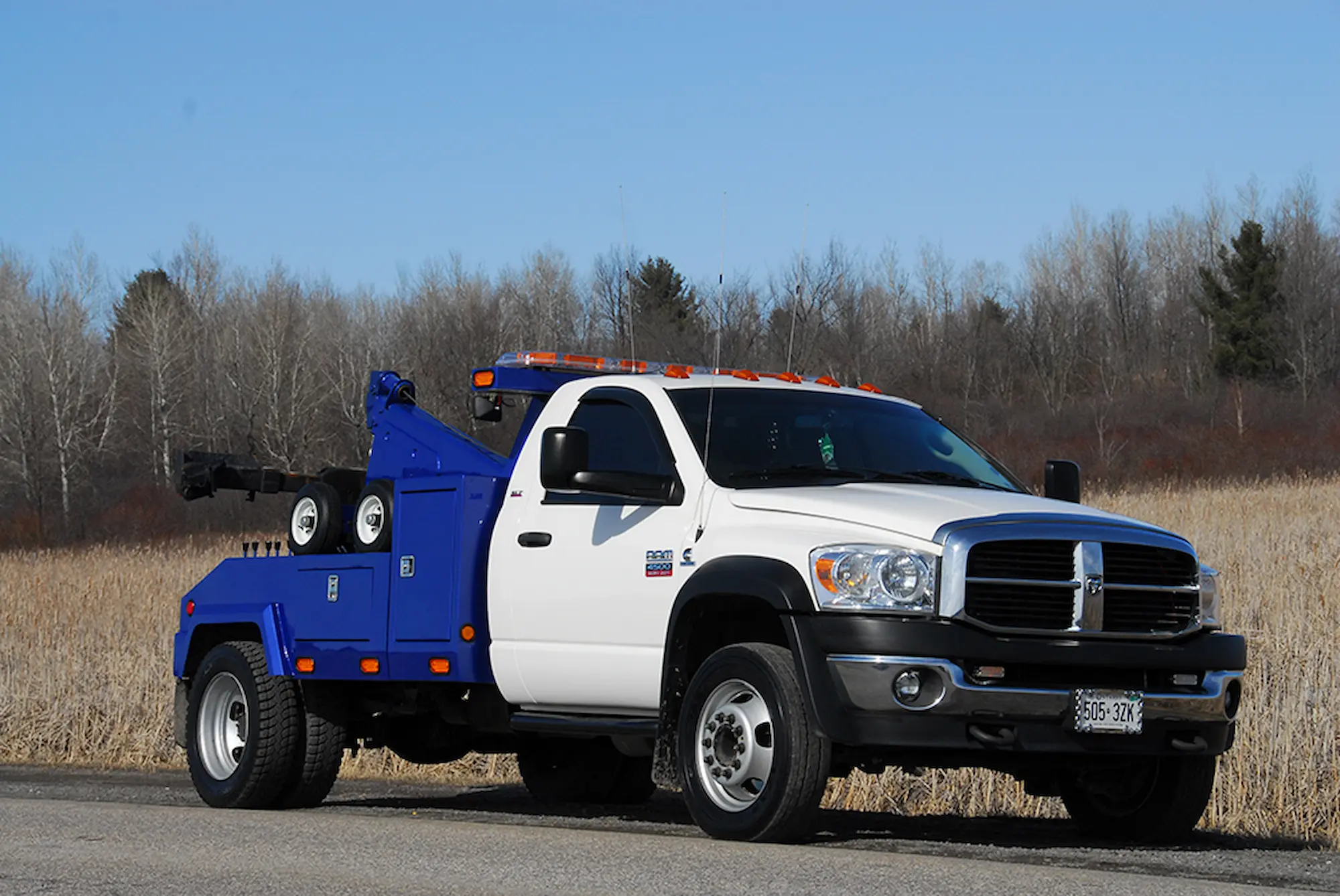

Metro Tow Trucks INT-5 blue integrated tow truck front side profile
Metro Tow Trucks INT-5 blue integrated wrecker side view

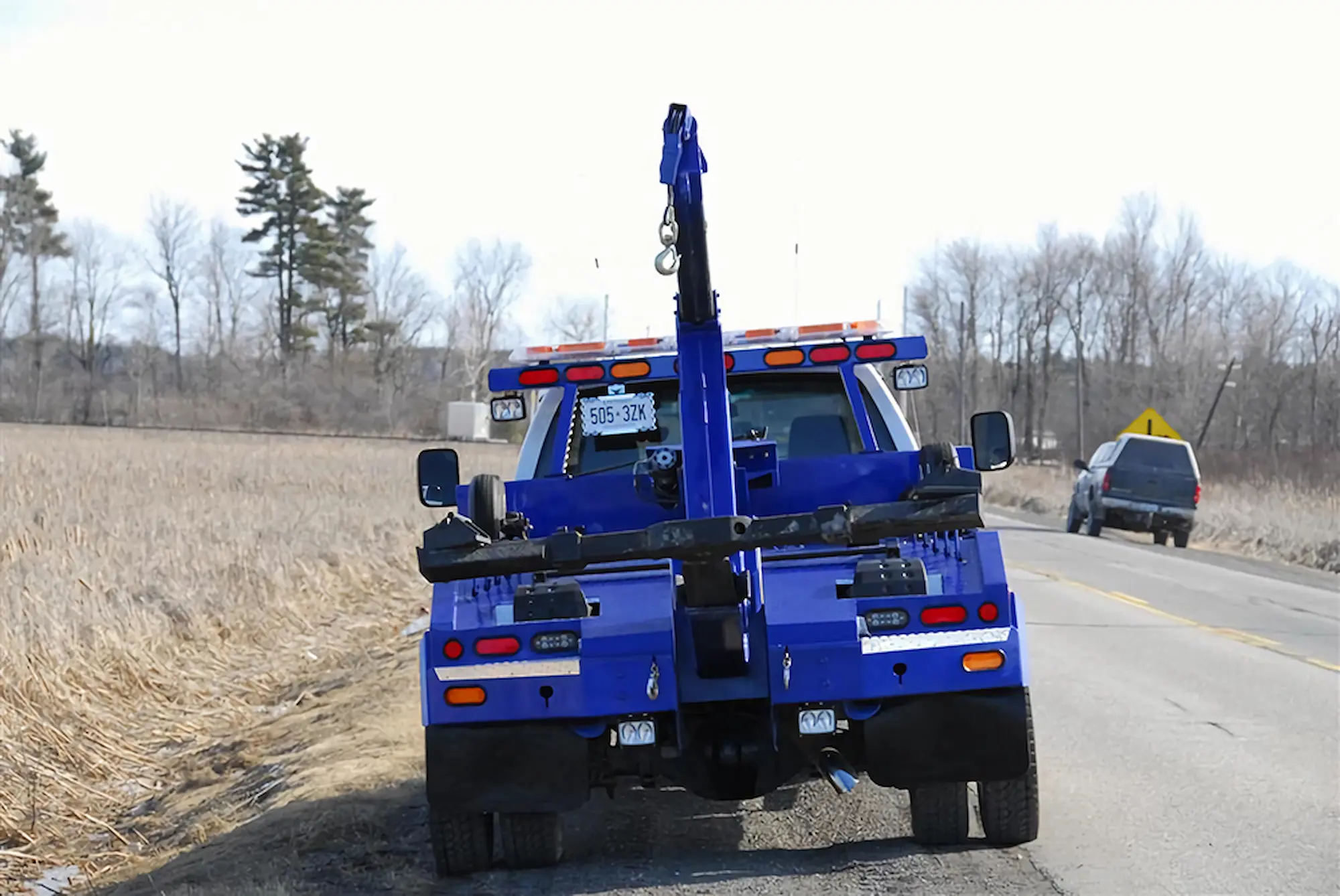

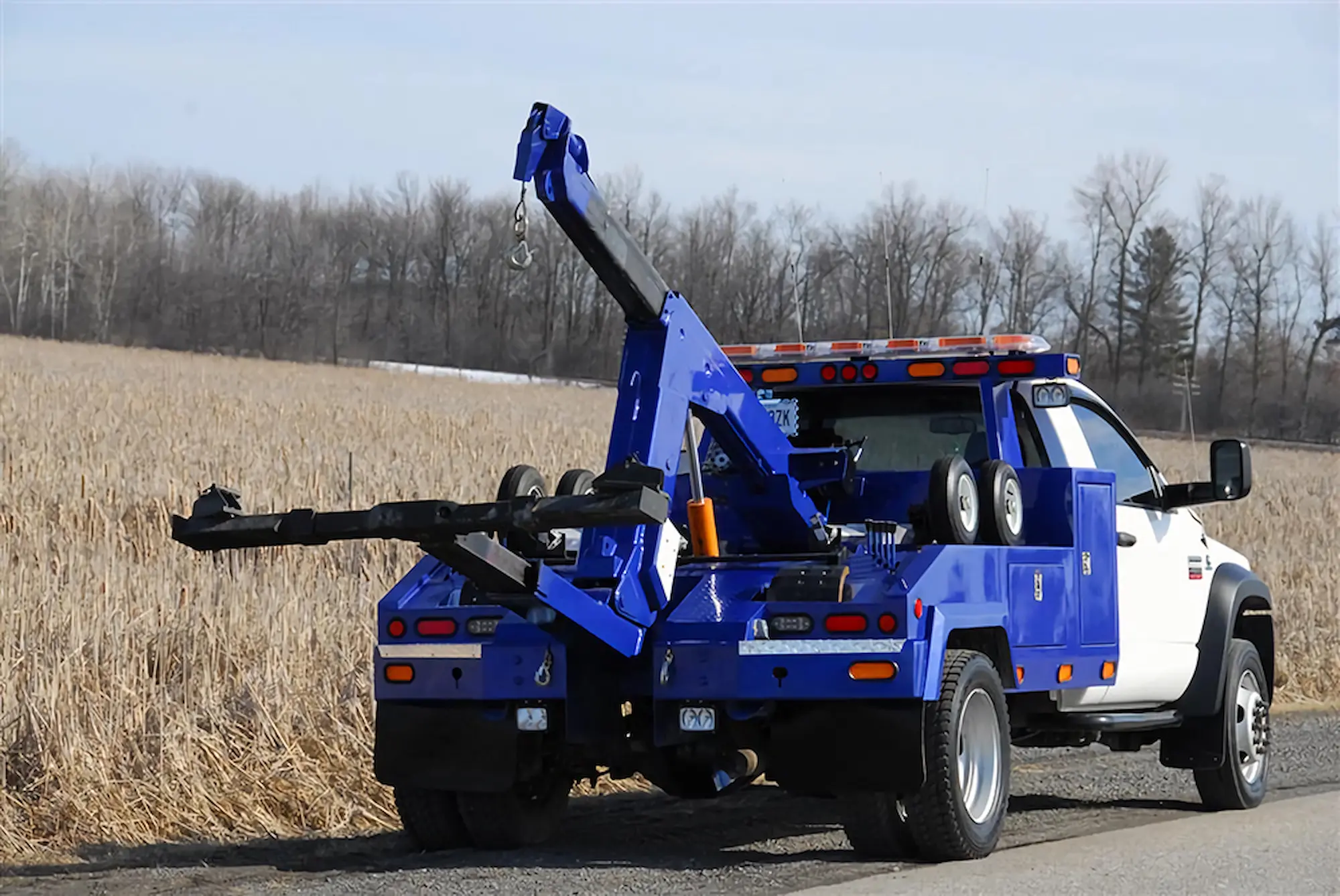

Metro Tow Trucks INT-5 blue integrated wrecker rear view with boom lifted on rural roadside

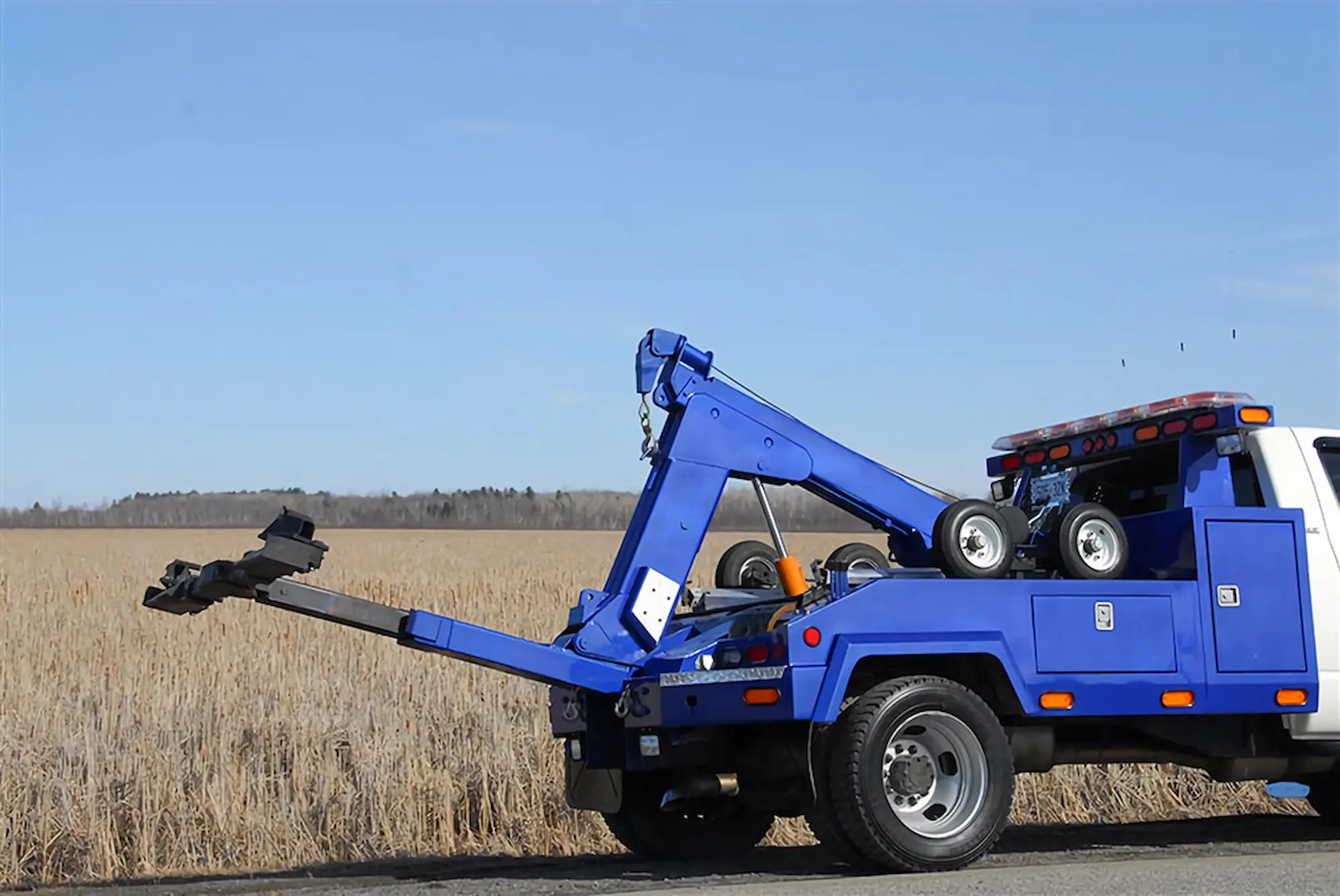

Metro Tow Trucks INT-5 blue wheel-lift fully extended on gravel road

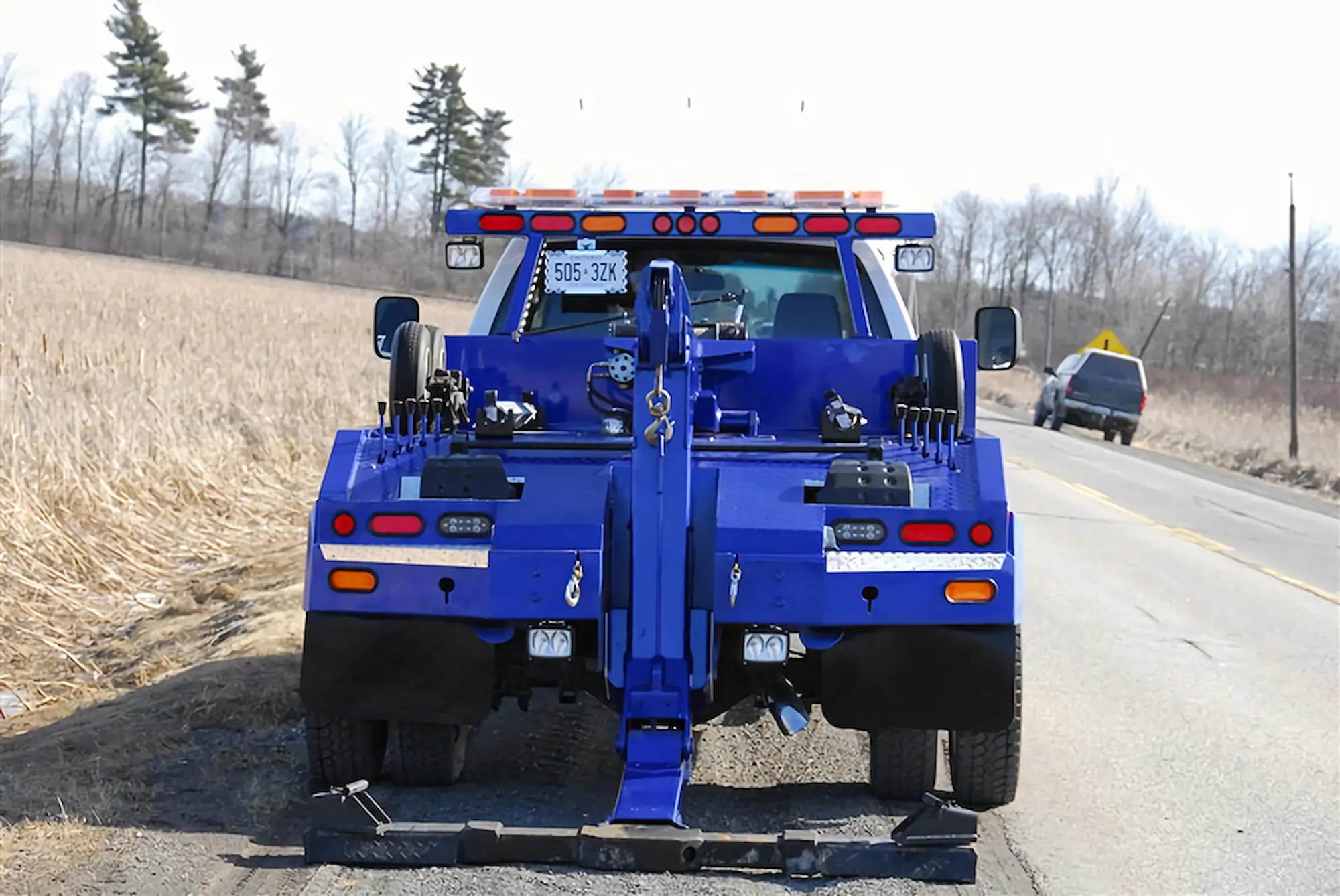

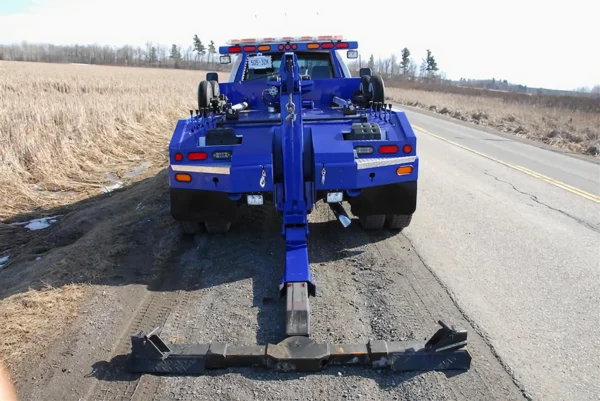

Metro Tow Trucks INT-5 blue rear view underlift extended in working position
Metro Tow Trucks INT-5 blue rear view

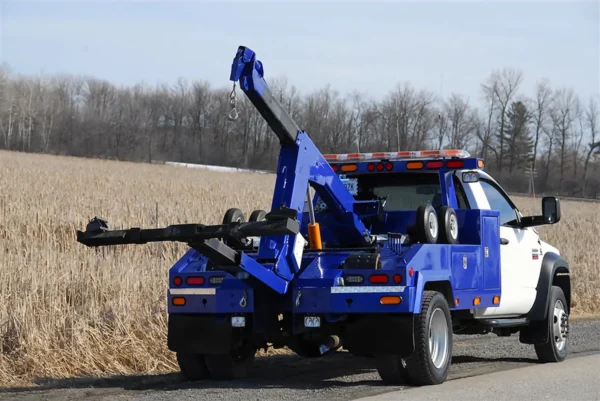

Metro Tow Trucks INT-5 blue integrated tow truck rear angled view with wheel-lift extended

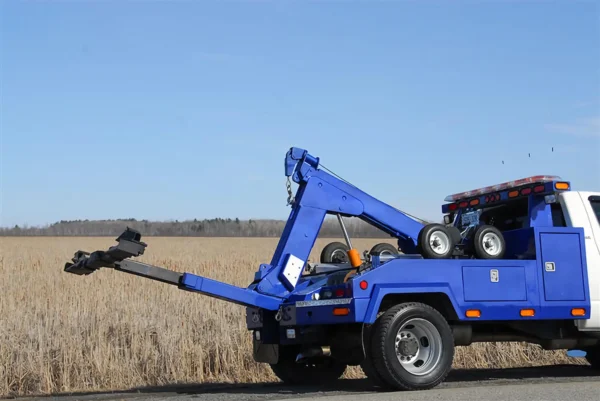

Metro Tow Trucks INT-5 blue underlift extension in operation roadside

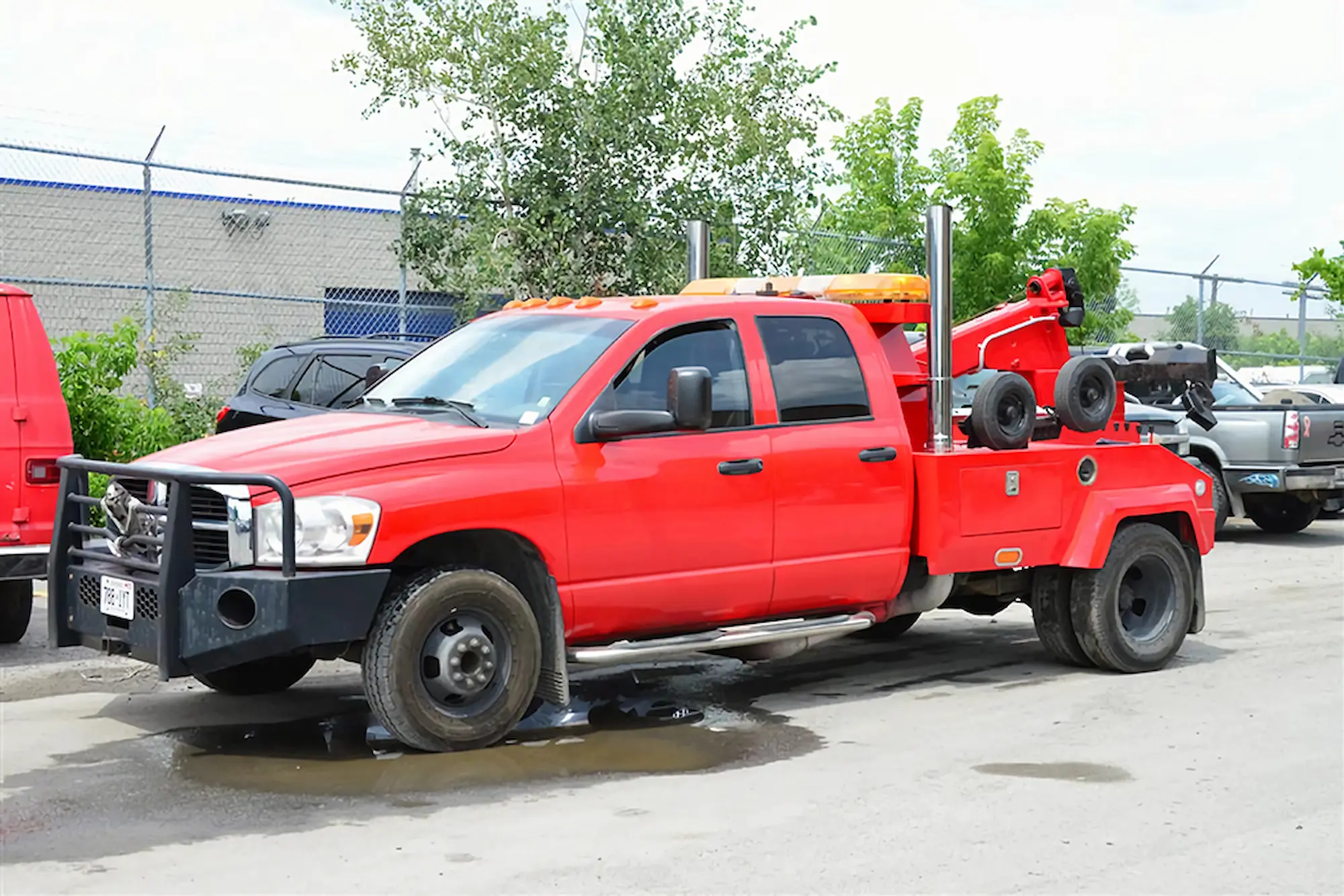

Metro Tow Trucks INT-5 red tow truck left side profile parked in service yard

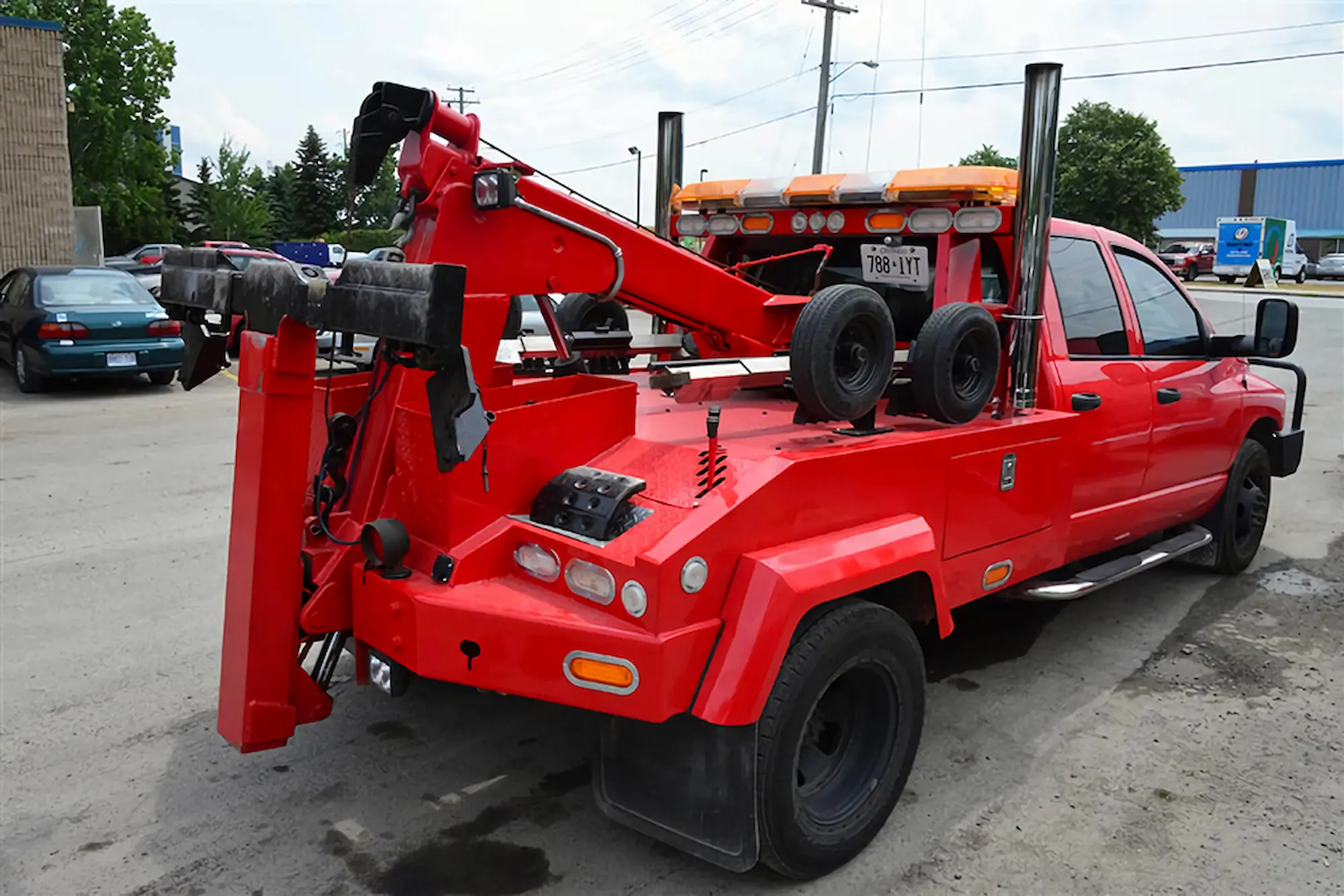

Metro Tow Trucks INT-5 red recovery unit rear side detail with wheel-lift cylinders visible
Metro Tow Trucks INT-5 red wrecker rear tow system close-up with wheel-lift

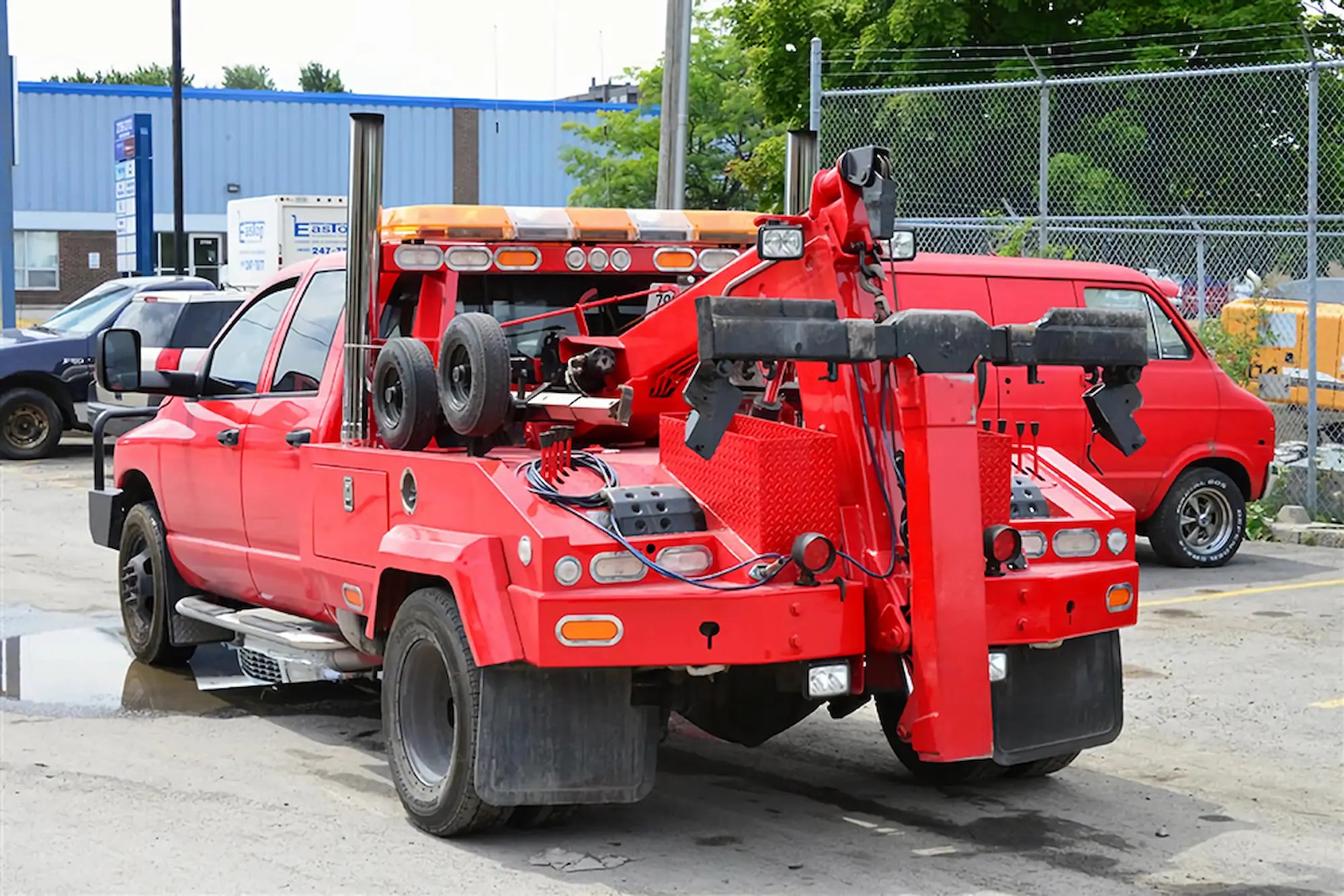

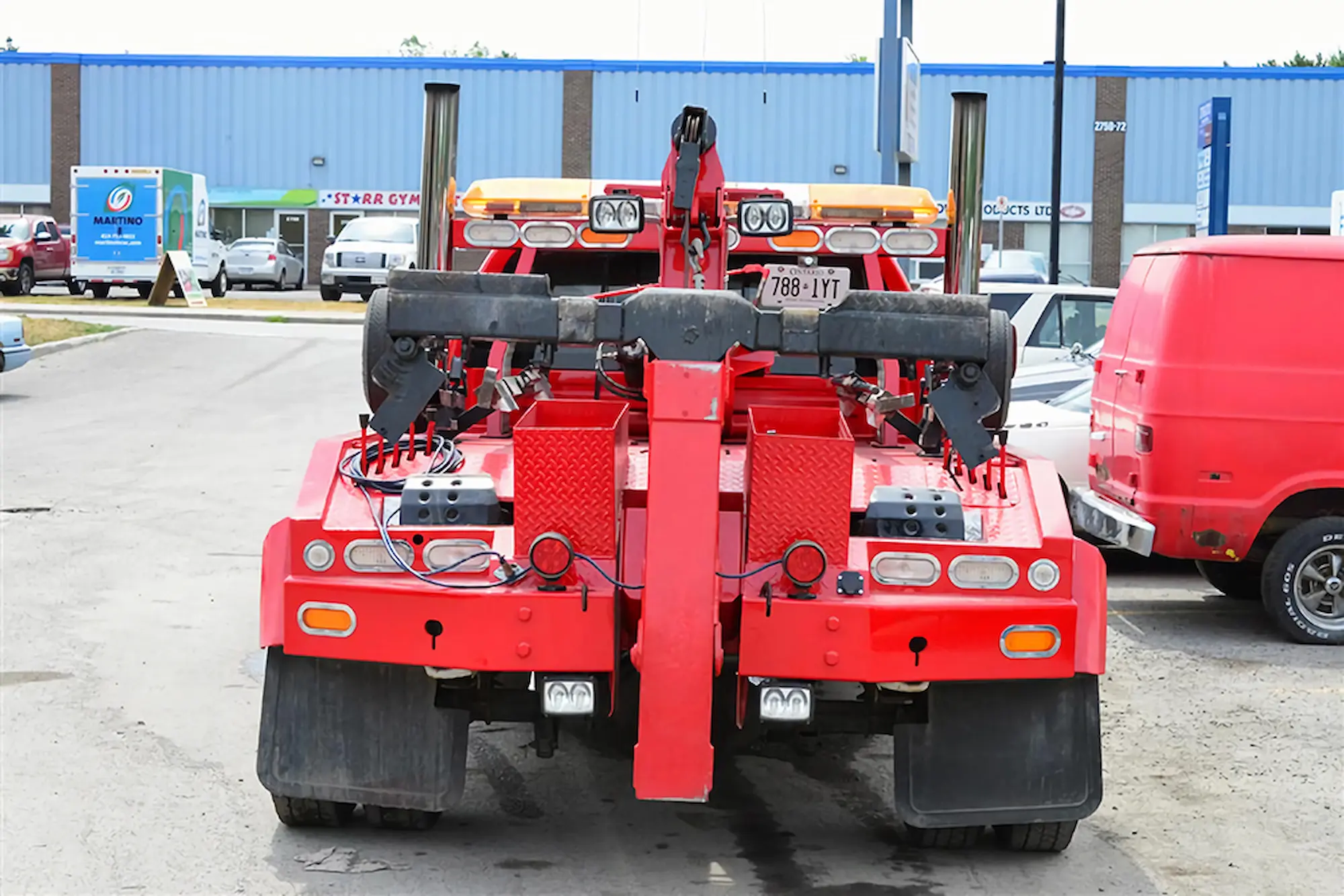

Metro Tow Trucks INT-5 red integrated tow truck rear view showing dolly and underlift system
Metro Tow Trucks INT-5 white integrated wrecker angled view on roadside

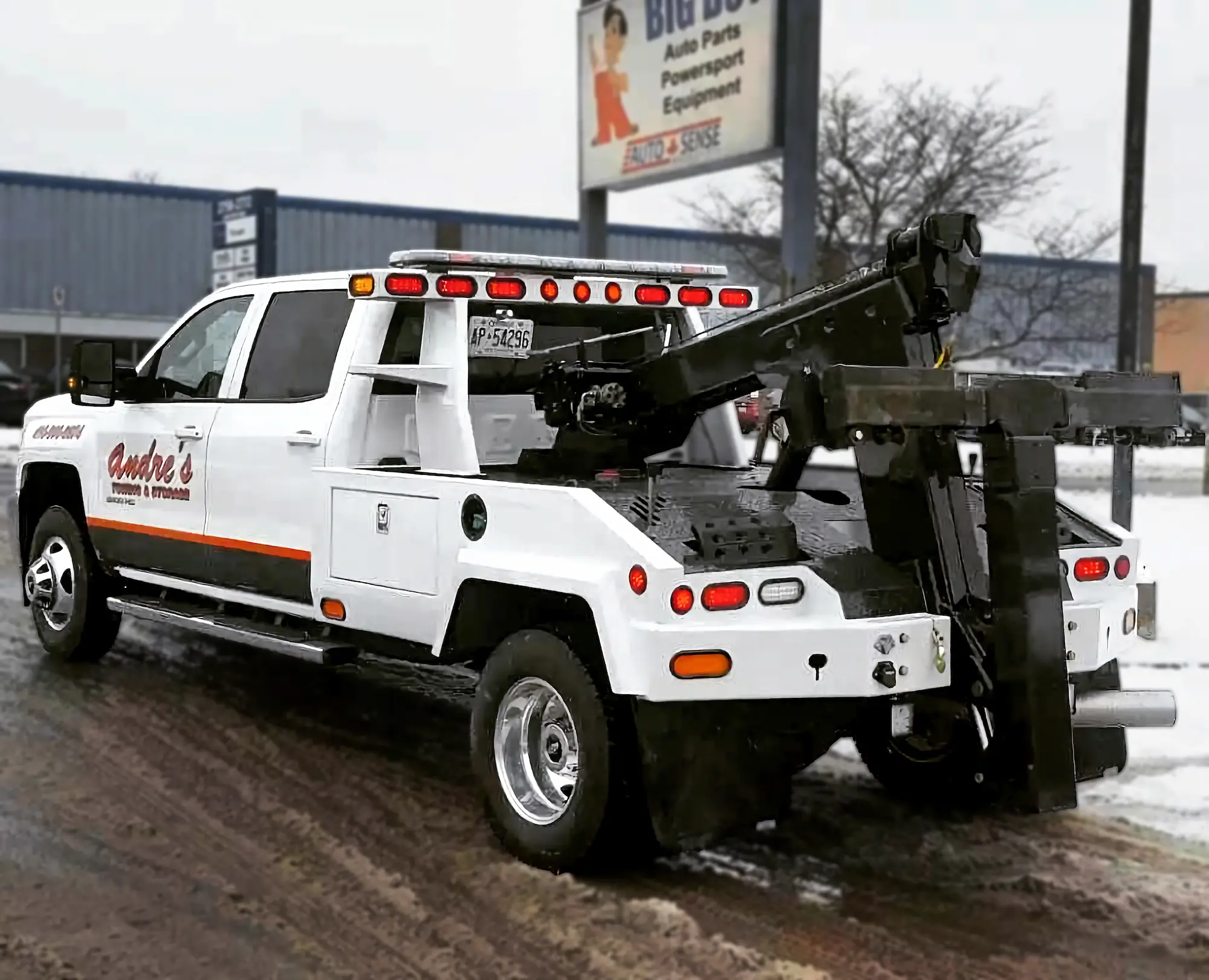

Metro INT-5 integrated wrecker in winter, side view white truck
White and blue INT-5 tow truck roadside view showing underlift forks

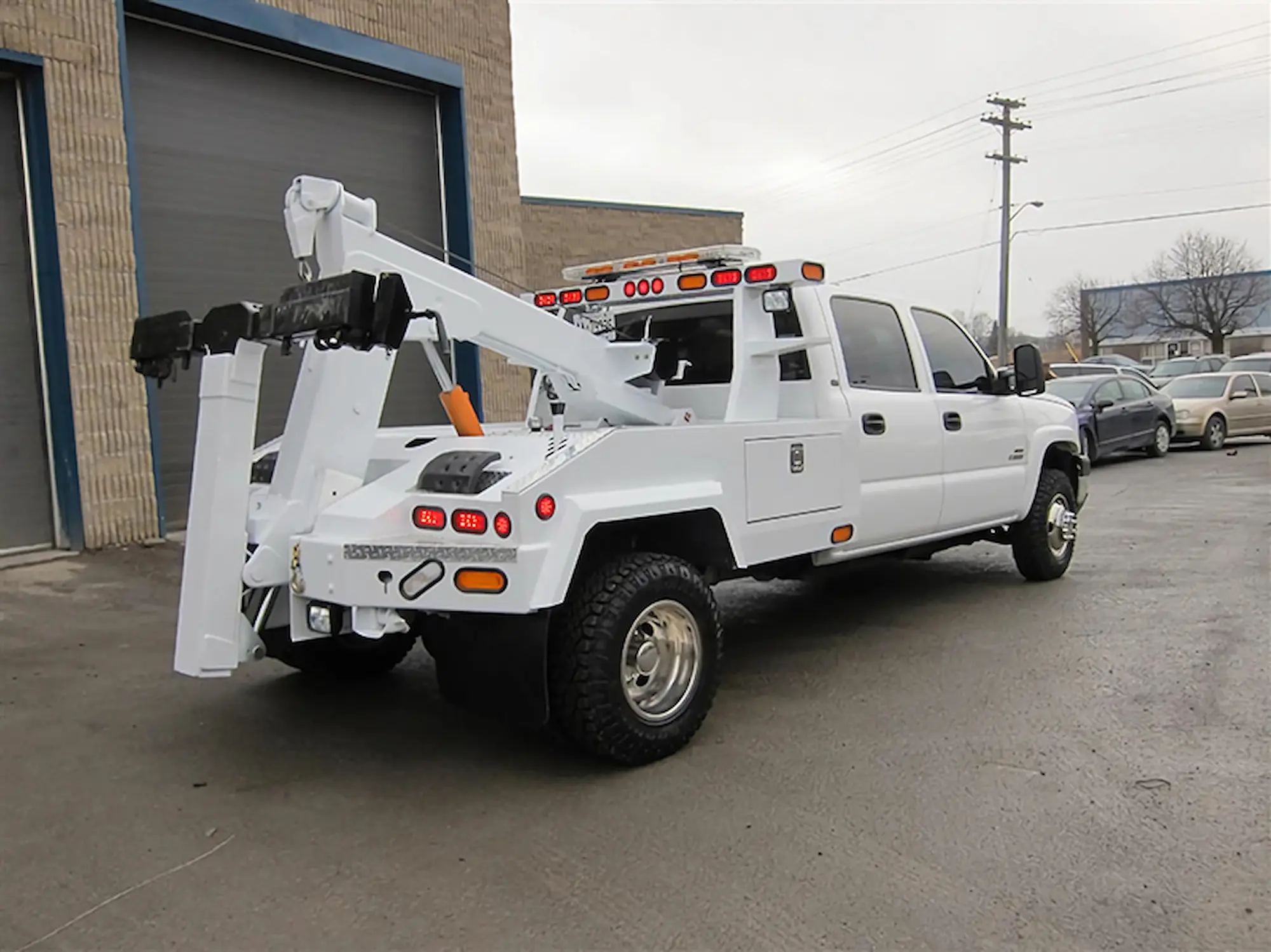

Metro Tow Trucks INT-5 white integrated wrecker rear angled view

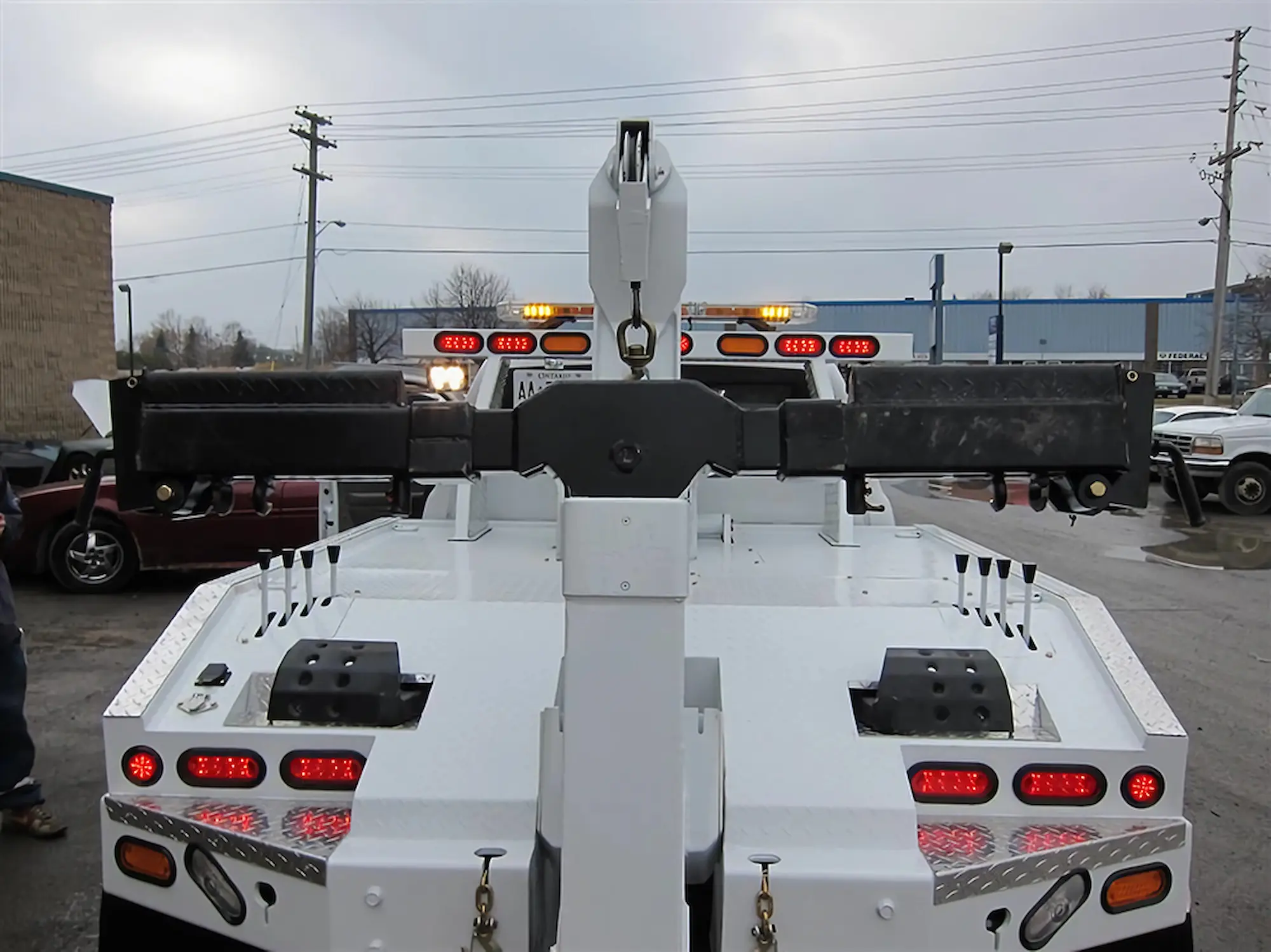

Metro Tow Trucks INT-5 white tow truck rear view with LED tail lights
Metro Tow Trucks INT-5 white wheel-lift arm close-up folded position
Metro Tow Trucks INT-5 white underlift detail with hydraulic system and pivots
Metro Tow Trucks INT-5 white recovery boom and warning lights close-up
Metro Tow Trucks INT-5 white boom top view showing towing attachment points

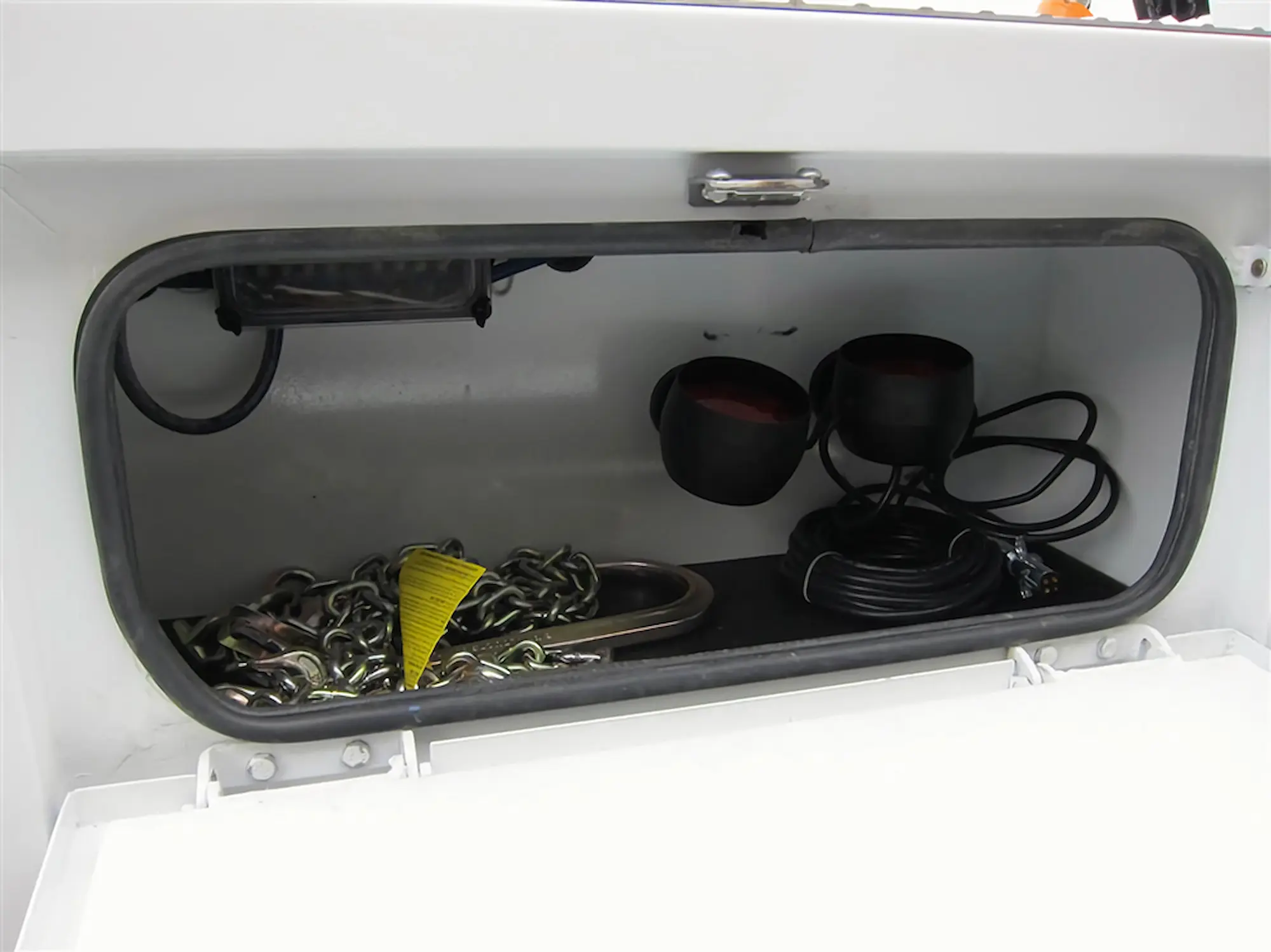

Metro Tow Trucks INT-5 white tool box showing towing accessories

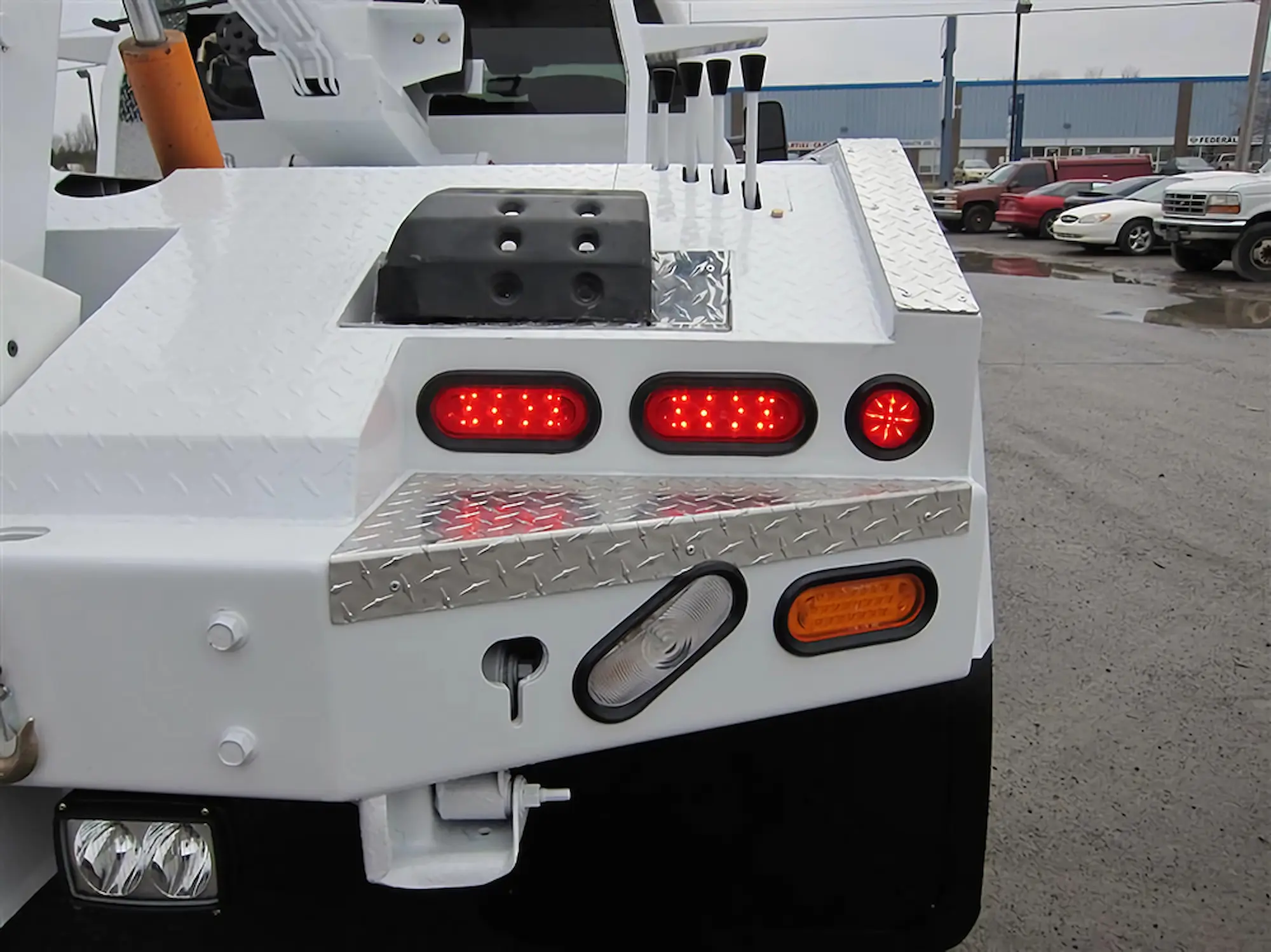

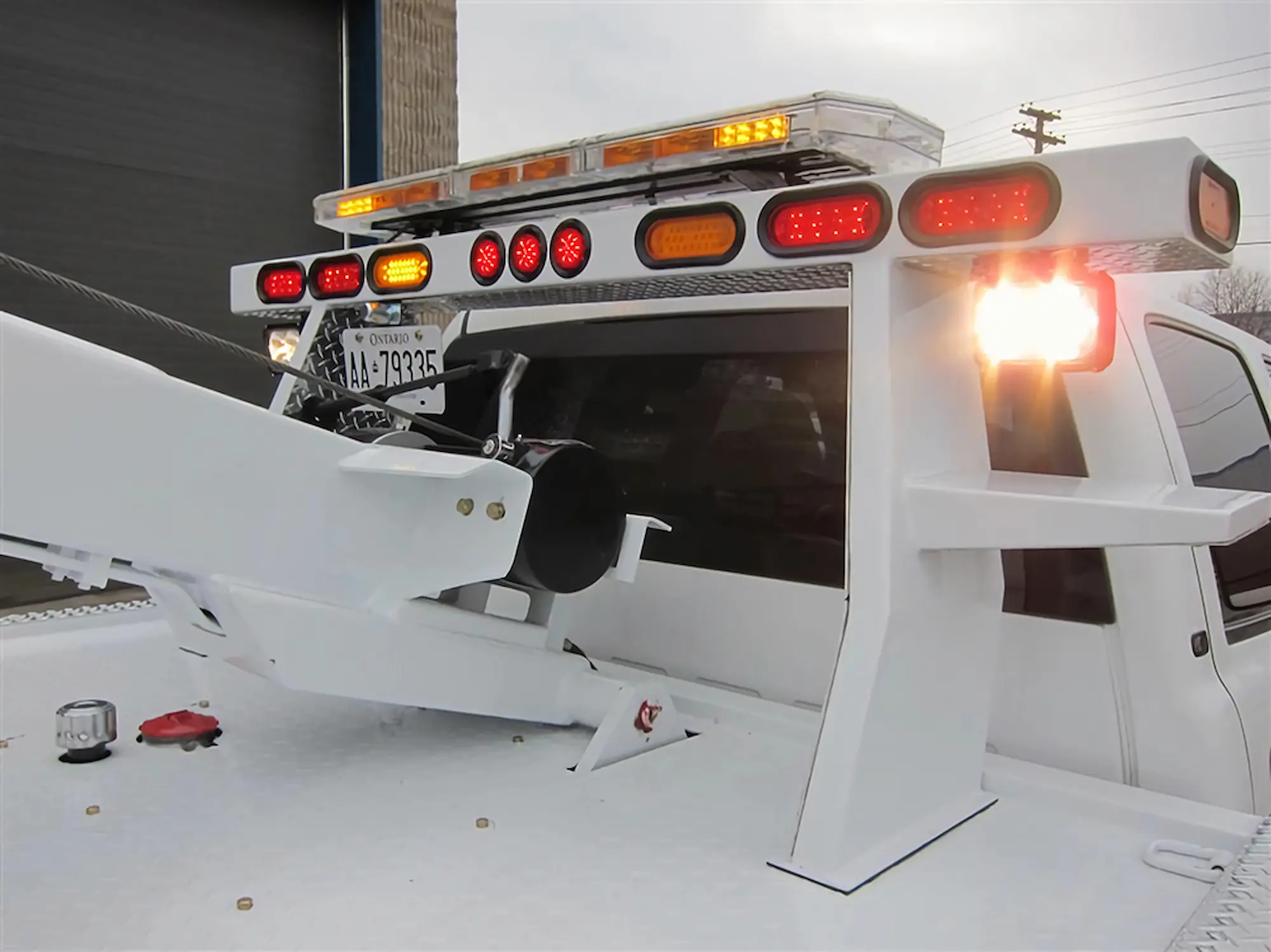

Metro Tow Trucks INT-5 rear light cluster close-up and tow connections
Metro Tow Trucks INT-5 rear warning light close-up

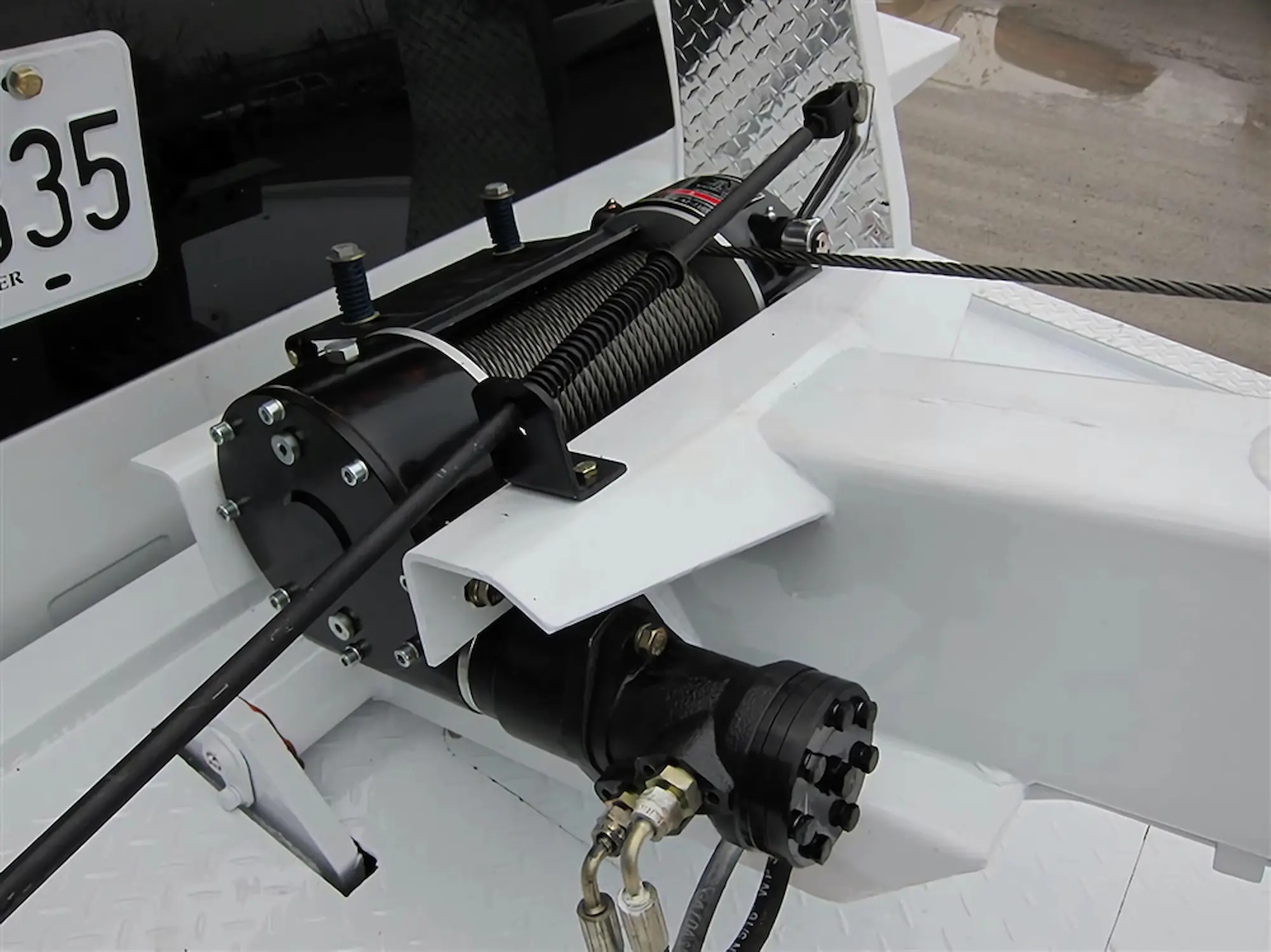

Metro Tow Trucks INT-5 white tow truck winch close-up
Metro Tow Trucks INT-5 blue integrated wrecker rear three-quarter right view
Metro Tow Trucks INT-5 blue integrated tow truck front side profile
Metro Tow Trucks INT-5 blue integrated wrecker side view
Metro Tow Trucks INT-5 blue integrated wrecker rear view with boom lifted on rural roadside
Metro Tow Trucks INT-5 blue wheel-lift fully extended on gravel road
Metro Tow Trucks INT-5 blue rear view underlift extended in working position
Metro Tow Trucks INT-5 blue rear view
Metro Tow Trucks INT-5 blue integrated tow truck rear angled view with wheel-lift extended
Metro Tow Trucks INT-5 blue underlift extension in operation roadside
Metro Tow Trucks INT-5 red tow truck left side profile parked in service yard
Metro Tow Trucks INT-5 red recovery unit rear side detail with wheel-lift cylinders visible
Metro Tow Trucks INT-5 red wrecker rear tow system close-up with wheel-lift
Metro Tow Trucks INT-5 red integrated tow truck rear view showing dolly and underlift system
Metro Tow Trucks INT-5 white integrated wrecker angled view on roadside
Metro INT-5 integrated wrecker in winter, side view white truck
White and blue INT-5 tow truck roadside view showing underlift forks
Metro Tow Trucks INT-5 white integrated wrecker rear angled view
Metro Tow Trucks INT-5 white tow truck rear view with LED tail lights
Metro Tow Trucks INT-5 white wheel-lift arm close-up folded position
Metro Tow Trucks INT-5 white underlift detail with hydraulic system and pivots
Metro Tow Trucks INT-5 white recovery boom and warning lights close-up
Metro Tow Trucks INT-5 white boom top view showing towing attachment points
Metro Tow Trucks INT-5 white tool box showing towing accessories
Metro Tow Trucks INT-5 rear light cluster close-up and tow connections
Metro Tow Trucks INT-5 rear warning light close-up
Metro Tow Trucks INT-5 white tow truck winch close-up

INT-5

The Work Horse

The INT-5 is a true workhorse, built to deliver the power and performance your daily operations demand—and ready to take on even more.
Engineered for reliability and efficiency, this model provides outstanding value while keeping operating costs low.

Whether you’re starting a new fleet or expanding an existing one, the INT-5 is the perfect choice to increase capability without increasing your budget.
Strong, dependable, and economical—everything you need in a light-duty wrecker.

Unit weight without chassis: 1,650 kg (3,600 lbs)

Product Inquiry
Call us for a Quote

Table of Contents

The Work Horse

The INT-5 is a true workhorse, built to deliver the power and performance your daily operations demand—and ready to take on even more.
Engineered for reliability and efficiency, this model provides outstanding value while keeping operating costs low.

Whether you’re starting a new fleet or expanding an existing one, the INT-5 is the perfect choice to increase capability without increasing your budget.
Strong, dependable, and economical—everything you need in a light-duty wrecker.

Unit weight without chassis: 1,650 kg (3,600 lbs)

Standard Features

  • 1620 mm (64”) Cab to Axle steel body
  • 4 ton (8,800 lbs) winch
  • Driver and passenger side manual controls
  • Wheel scoops
  • Fork receivers and 50 mm (2”) frame forks
  • Safety chains

Options

  • Tunnel box 610 mm (24’’)
  • Dollies
  • Extra 4 ton (8,800 lbs) winch
  • Rear anchors mounted on the under lift
  • Remote control
  • In cab controls
  • Extra frame forks
  • Custom paint in 2 or more colors
  • Extra tools (snatch blocks, chains, straps, hooks)
  • Aluminum body
  • LED working lights
  • LED strobe lights
  • LED lights inside toolbox
  • Installation services and extended warranty
  • Tow operators education & training

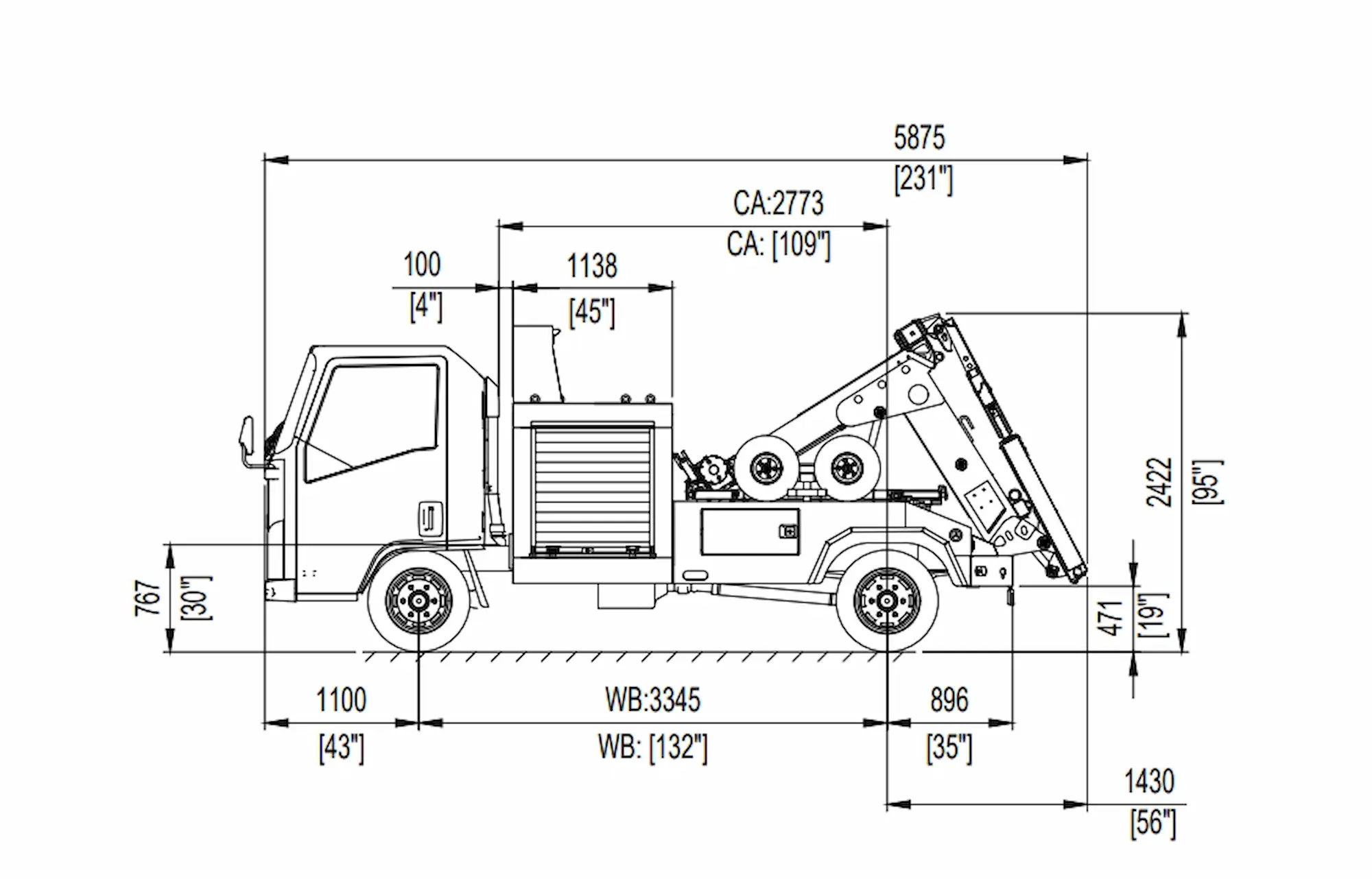

Line Drawing

NOTE: Axle configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Specifications

Boom Rating

  • Retracted Capacity (at max angle), kg (5000)
  • Extended Capacity (at max angle), kg (1500)
  • Max. Lift Angle, deg (32)
  • Max. Hook Height, mm (2456)
  • Reach Past Tailboard, mm (642)

Wrecker Boom Winch Rating

  • Winch Type (on 1st layer) (Worm)
  • Quantity (on 1st layer), pc(s) 1(2)
  • Pulling force (on 1st layer), kg 4000(8000)
  • Winch Type (on 2nd layer) (1457)

Wrecker Boom Wire Rope (on 1st layer)

  • Work Load Limit (each line), kg (1300)
  • Construction (7x19)
  • Diameter, mm (11)
  • Length, m (30)

Underlift Rating

  • Retracted Capacity (on forks), kg (3600)
  • Retracted distance to the forks, mm(785)
  • Extended Capacity (on forks), kg (2400)
  • Extended distance to the forks, mm (1731)
  • Negative tilt angle, deg (11)
  • Tow Rating, kg (3400)

Front Side Puller

  • Winch Type (Worm)
  • Quantity, pc(s) (1)
  • Pulling force, kg (4000)

Drag Belly Wire Rope

  • Work Load Limit (each line), kg (1300)
  • Construction (7x19)
  • Diameter, mm (11)
  • Length, m (30)

Hydraulic System

  • Operating Pressure, bar (203)
  • Hydraulic Line Burst Pressure, bar (1320)
  • System Flow, LPM (60)
  • System Capacity, L
  • System Capacity, L
  • Reservoir Capacity, L (25)

Type of Oil

  • -17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
  • -40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)

Vehicle Recommendations

  • Front axle(s) weight (min) (1x3000)
  • Rear axle(s) weight (min) (1x4500)
  • Recommended GVW (min), kg (7000)
  • Recommended Tire Size (R20)
  • Clear CA, mm (1620)

Unit Weight, kg (1273)

Some optional equipment may be shown.

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
