FB-5

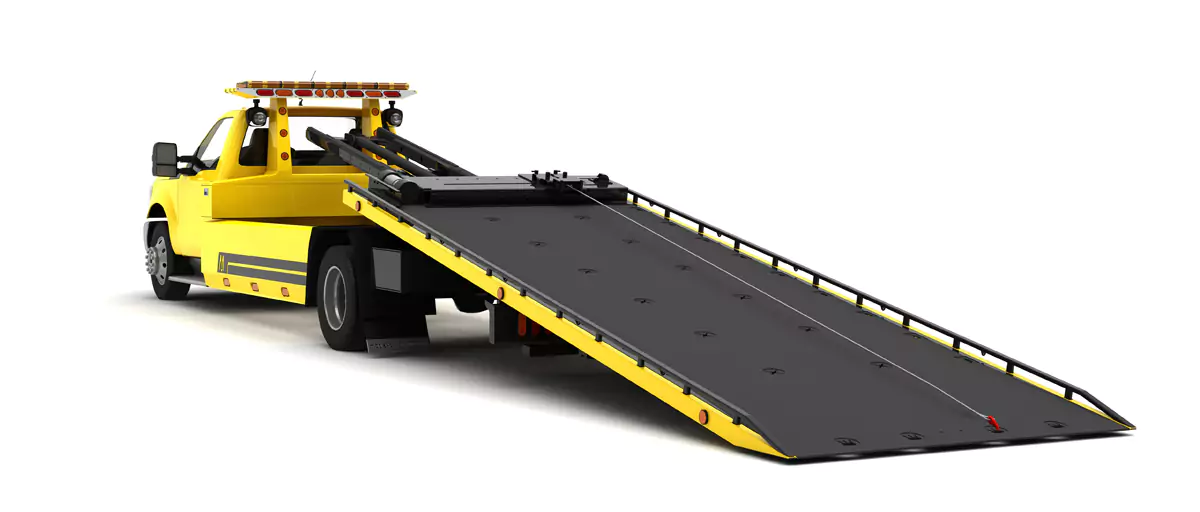

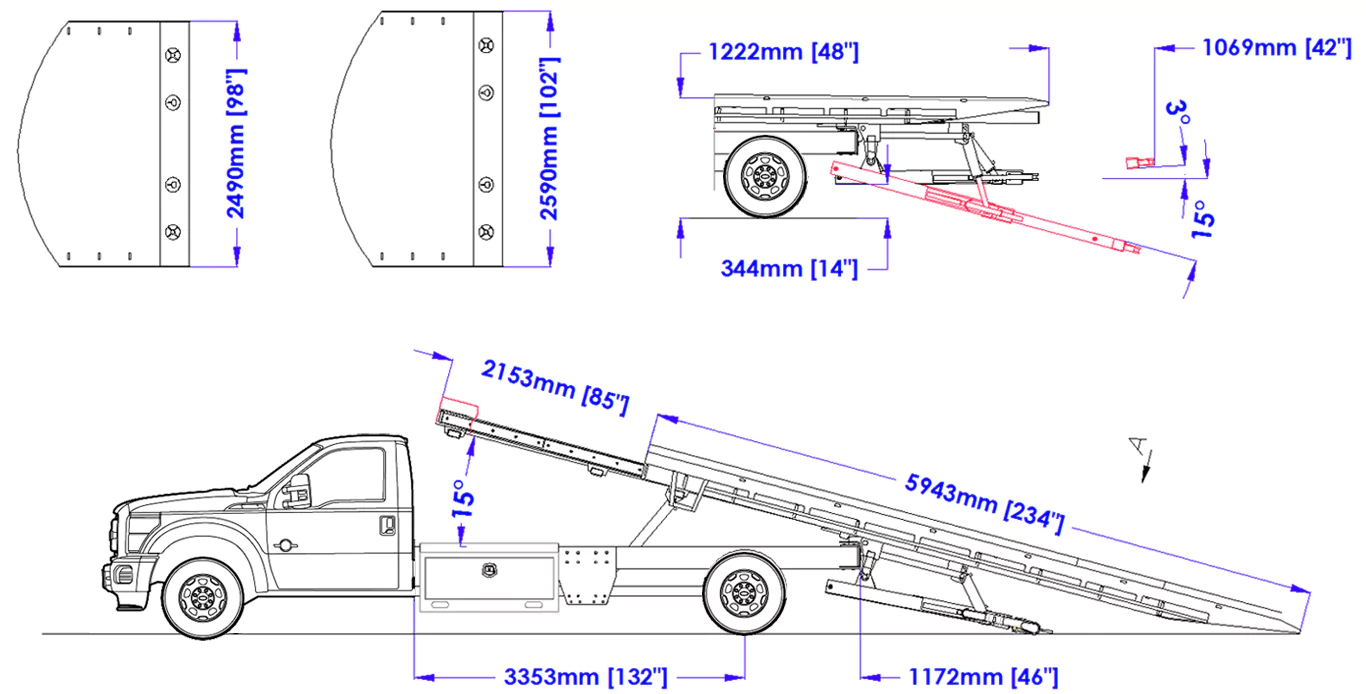

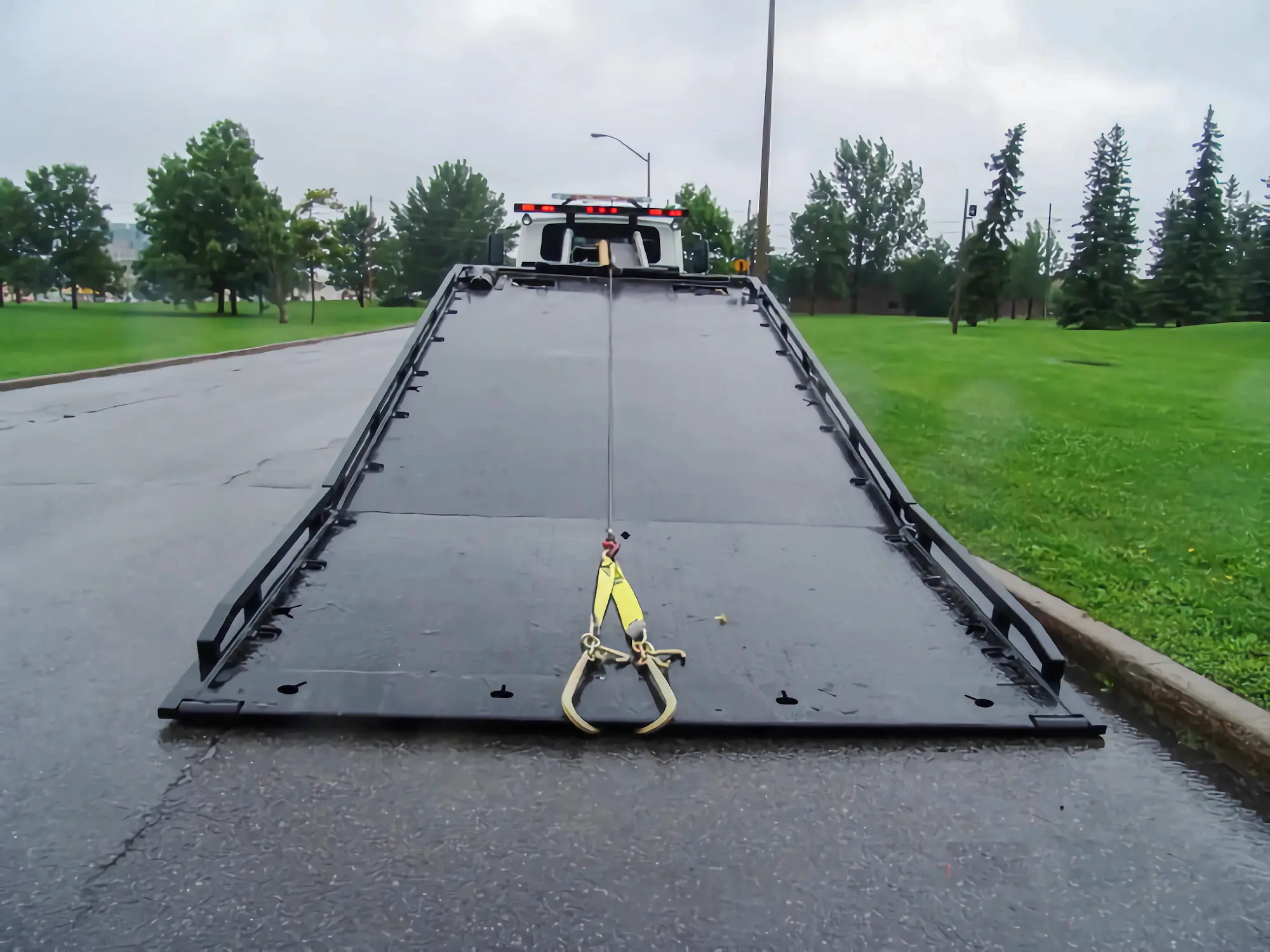

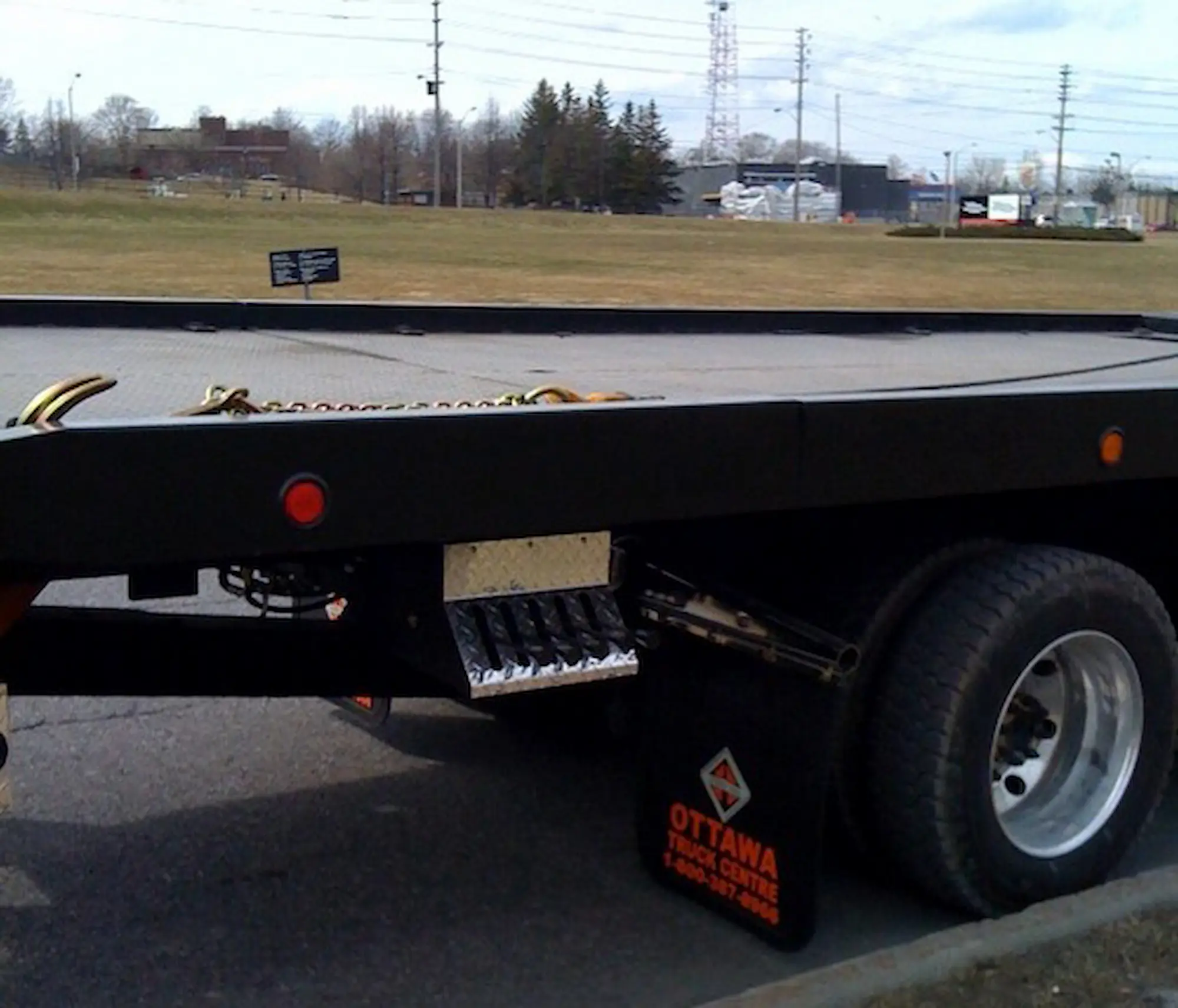

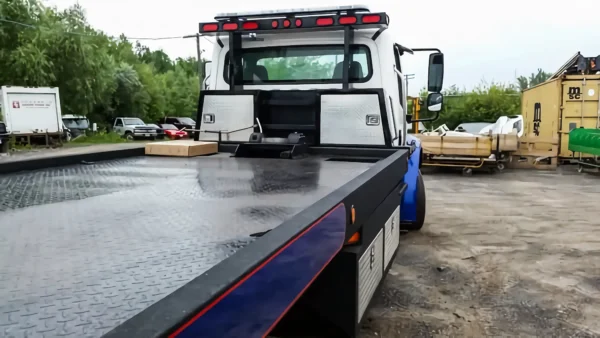

Deck

• Deck Rating, kg (3600)
• Overall Deck Length, mm (5936)
• Top Deck Length, mm (5365)
• Overall Deck Width, mm (2438)
• Deck Width (inside), mm (2432)
• Deck Thickness, mm (3)

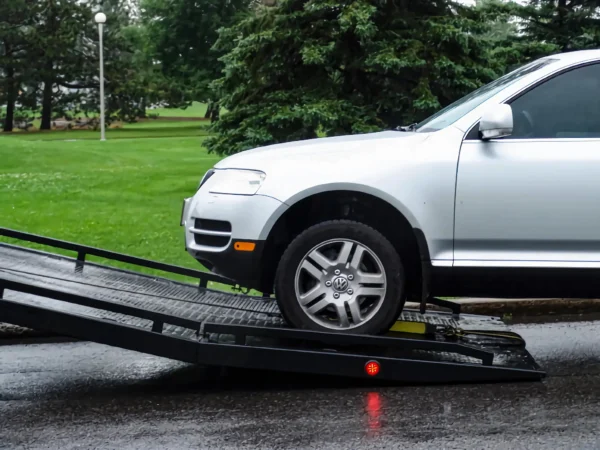

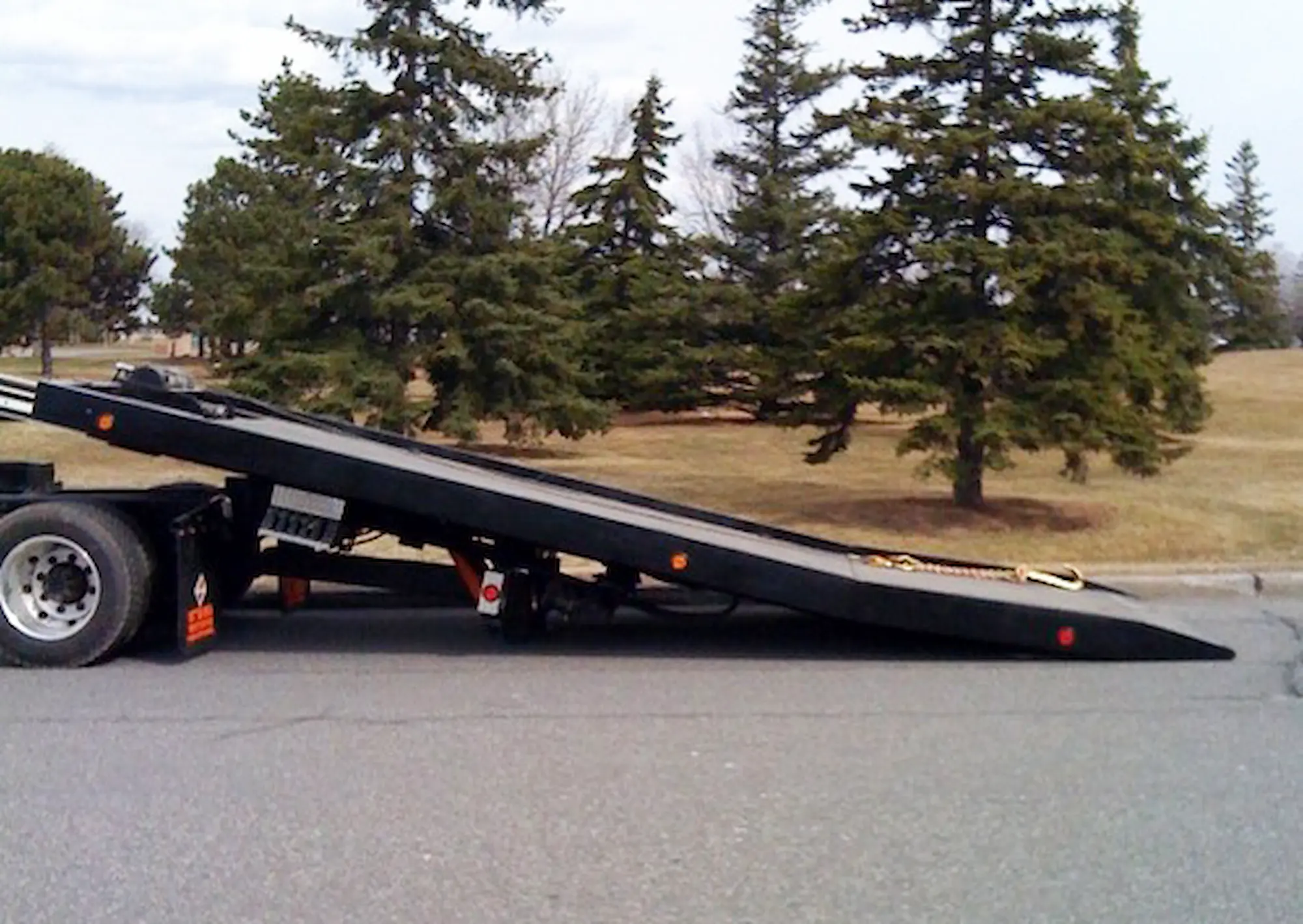

• Deck Tilt Angle, deg (12)

Drag Winch Rating

• Winch Type (Worm)
• Quantity , pc(s) (1)
• Pulling force, kg (4000)

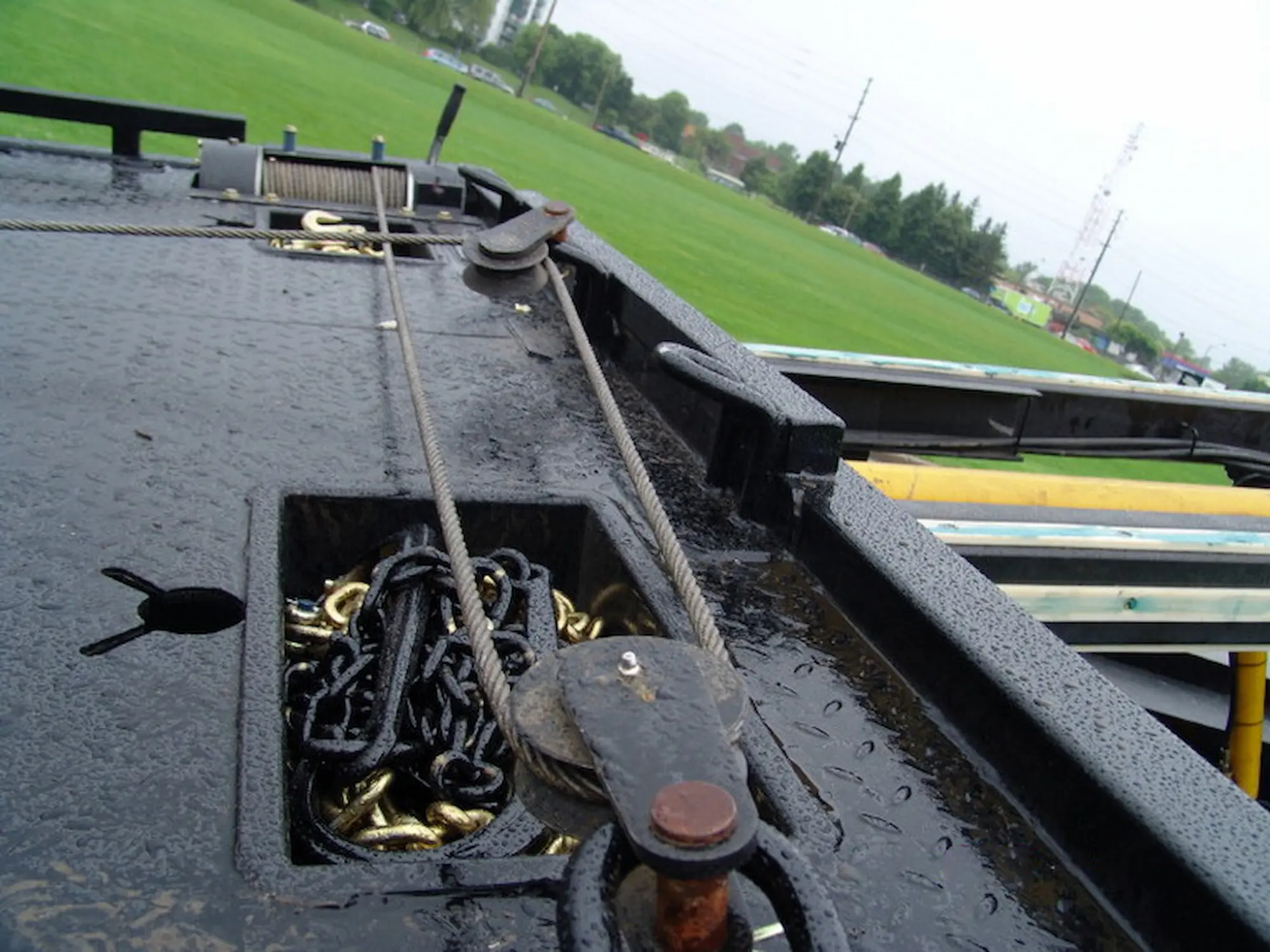

Drag Wire Rope

• Work Load Limit (each line), kg (1300)
• Construction (7x19)
• Diameter, mm (11)
• Length, m (30)

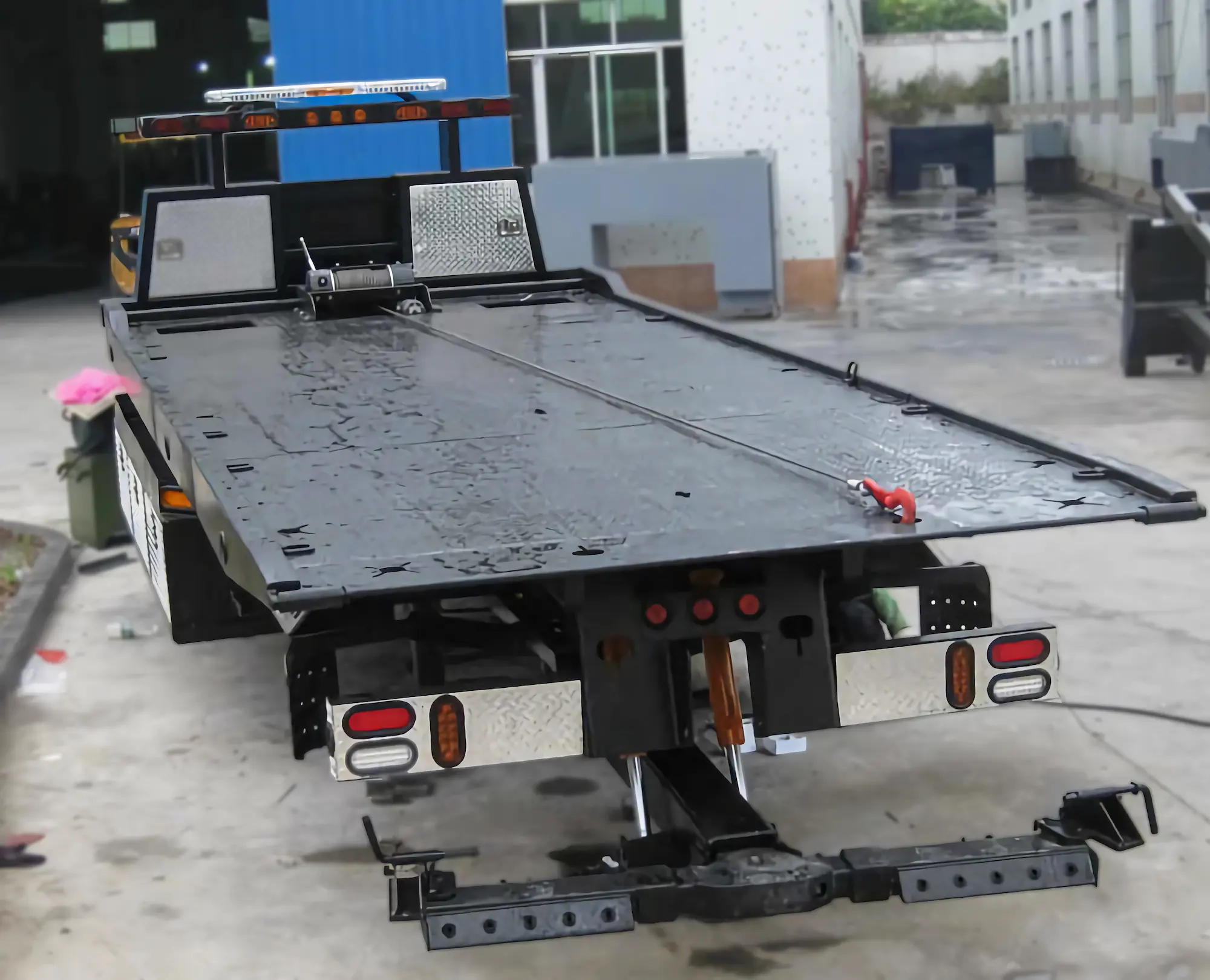

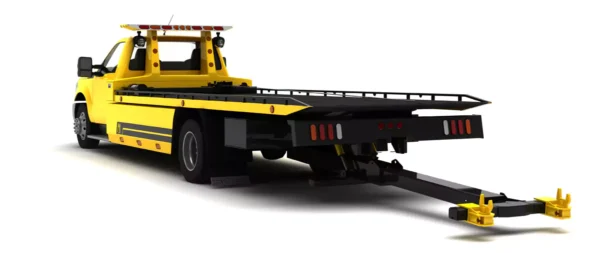

Underlift Rating

• Retracted Capacity (to center wheel lift), kg (1800)
• Retracted distance to center wheel lift, mm
• Extended Capacity (to center wheel lift), kg (900)
• Extended distance to center wheel lift, mm (1460)
• Negative tilt angle, deg (12)
• Tow Rating, kg (4500)

Tire Lift Rating

• Lifting Capacity (each arm), kg (5600)
• Lifting Capacity (total), kg (11300)
• Towing Capacity, kg (20000)

5th wheel adapter

• Lifting Capacity, kg (6800)
• Towing Capacity, kg (11300)

Pintle Hook Ball Hitch

• 2" (50mm) Ball Hitch, kg (4500)
• Pintle Hook, kg (7200)
• Gross Trailer Weight Max. vertical Load, kg (1300)

Front Side Puller

• Winch Type (Worm)
• Quantity, pc(s) (1)
• Pulling force, kg (4000)

Drag Belly Wire Rope

• Work Load Limit (each line), kg (1300)
• Construction (7x19)
• Diameter, mm (11)
• Length, m (30)

Hydraulic System

• Operating Pressure, bar (203)
• Hydraulic Line Burst Pressure, bar(1320)
• System Flow, LPM (60)
• System Capacity, L (15)
• System Capacity, L (23)
• Reservoir Capacity, L (28)

Type of Oil

• -17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
• -40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)

Vehicle Recommendations

• Front axle(s) weight (min) (1x3600)
• Rear axle(s) weight (min) (1x6100)
• Recommended GVW (min), kg (8000)
• Recommended Tire Size (R19.5 Low Prof)
• Clear CA, mm (3015)

Unit Weight, kg (2215)

Some optional equipment may be shown.

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
